Case study

HOLOPLOT: TTL Lan® UltraFlex™ Cat.6A S/FTP patch cable

For HOLOPLOT’s 3D audio systems, TTL Network developed a flexible patch cable that withstands regular coiling and bending.

The starting point

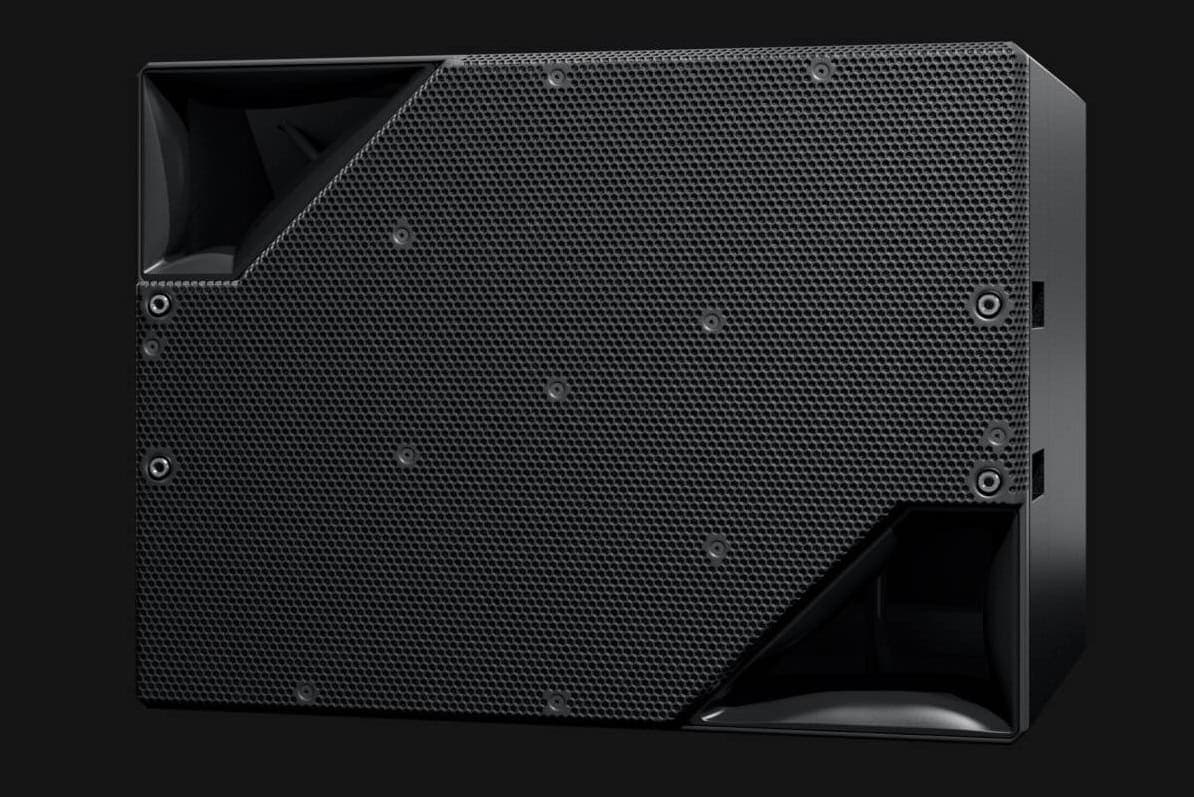

HOLOPLOT is a Berlin-based hardware and software manufacturer of professional 3D audio technology. HOLOPLOT systems are used worldwide in concert halls, 3D cinemas and immersive venues.

Zur Website von HOLOPLOT(external site)

Die technische Herausforderung

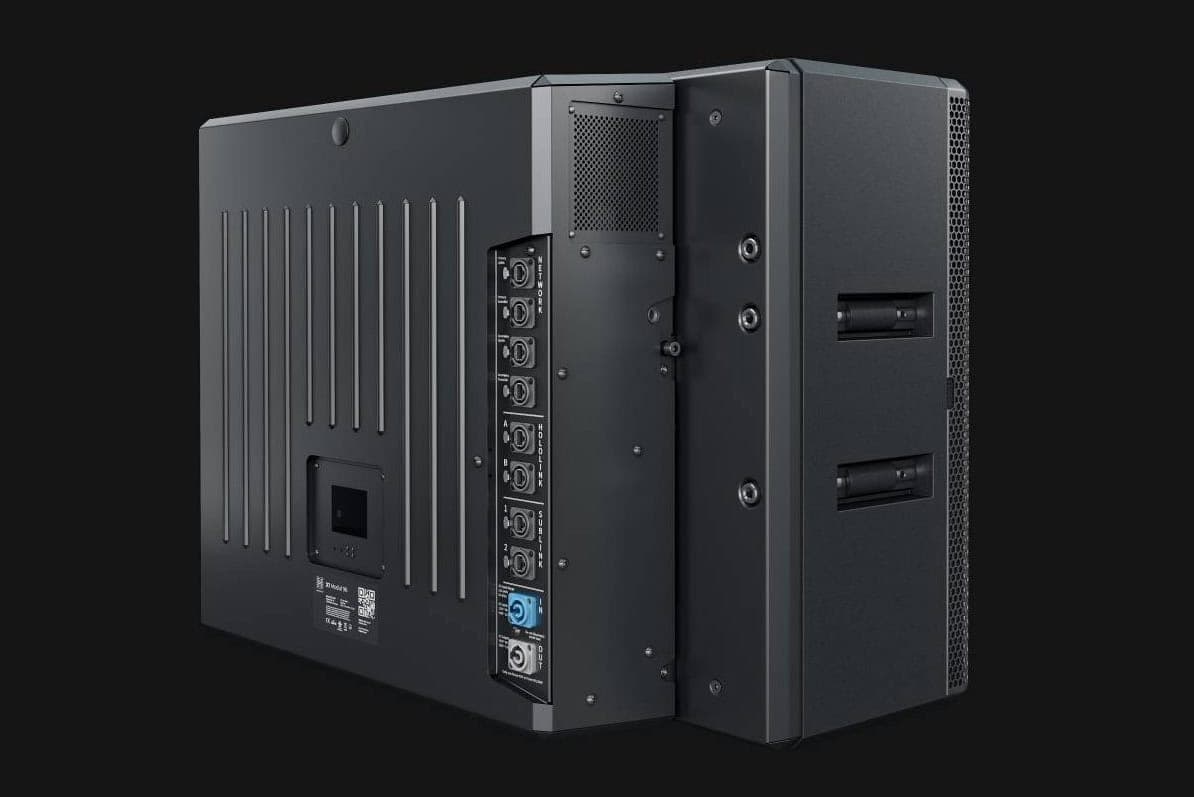

To install several DSP loudspeaker systems in a 360° cinema, the customer needed a reliable, flexible Cat.6A patch cable with a small bend radius and UL approval. In addition, the connectors had to be robustly built, securely attached to the cable and compact in size, to ensure a fail-safe data flow and achieve the highest possible packing density.

TTL’s solution

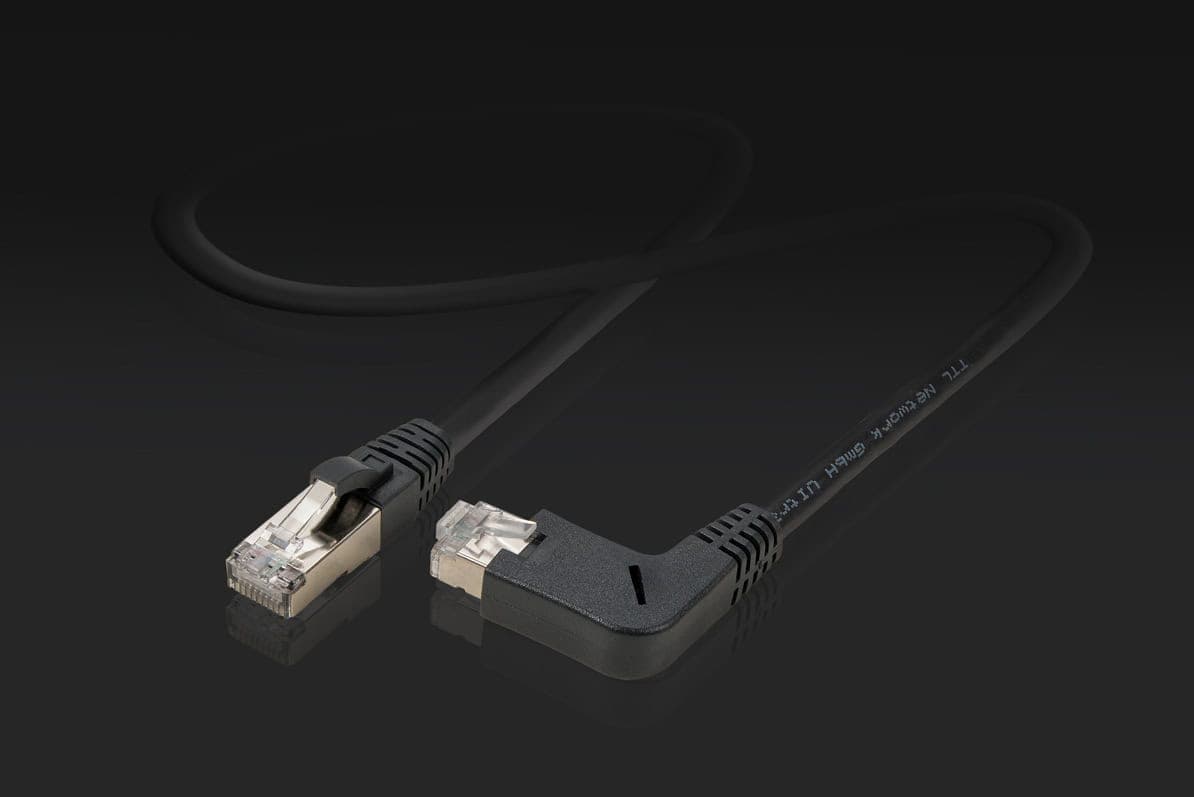

TTL Lan® UltraFlex™ Cat.6A S/FTP patch cable

Connection requirements

Approval: UL-listed, LSOH sheath
Flex cycles: 8,500 under load
Connector design: Compact, angled
Bend radius: 10 mm
Mating cycles: 1,200
Data transmission: Up to 10 Gbit/s, 500 MHz

Capabilities in this project

Data

Watch the video: Illuminarium X HOLOPLOT(external site)

„We are very satisfied with the flexible, halogen-free Cat.6A UltraFlex patch cable with compact angled connectors that TTL Network developed for our loudspeaker systems. The cable meets all the required safety standards and physical requirements for stable signal transmission, robust workmanship, a space-saving design and a flexible cable that withstands regular coiling and bending. In use, the cable shows its high performance and delivers an impressive sound experience.“

Christian Kleiner · Electrical Engineer
