Case study

satis&fy: Steel-armoured HDMI AOC cable

For use at events, TTL Network developed a robust HDMI AOC cable for satis&fy – steel-armoured, extremely flexible and suitable for cable drums.

The starting point

satis&fy AG, headquartered in Karben, is an international market leader in live communication and 3D marketing.

The specialist in AV, sound and lighting technology installs the complete media technology at events, in showrooms and for live acts.

Zur Website von satis&fy(external site)

Die technische Herausforderung

The customer was looking for an HDMI cable solution that can bridge long distances and also offers a certain degree of robustness.

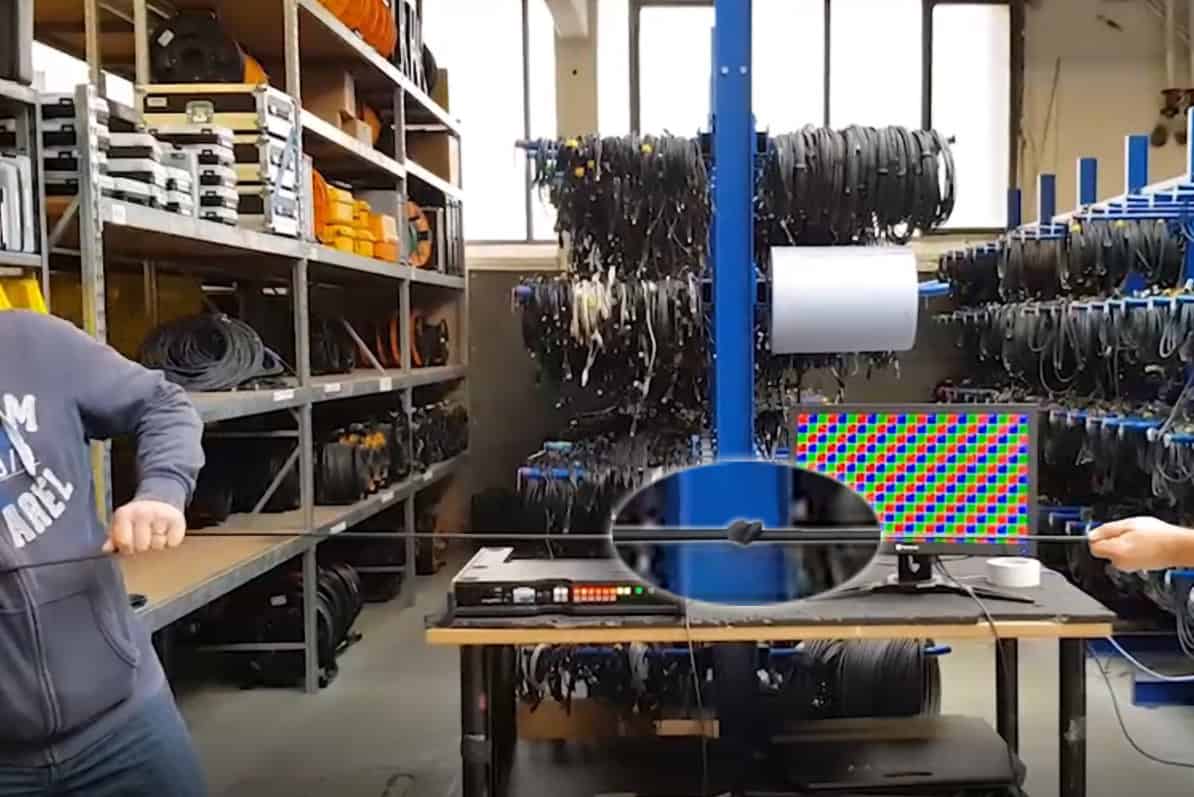

The cable needed to be highly flexible so that it could be wound onto a cable drum. It also had to support 4K and transmit HDMI signals quickly and reliably over lengths of up to 100 metres.

TTL’s solution

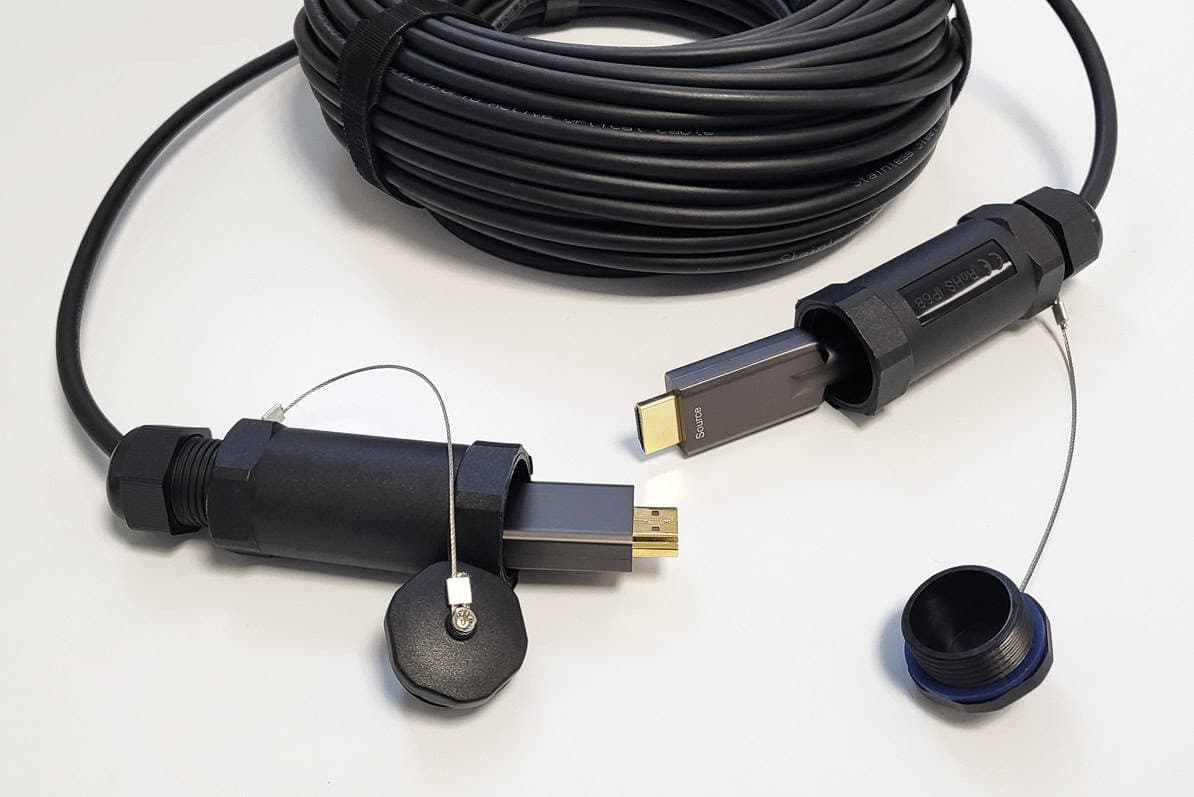

Steel-armoured HDMI AOC cable

Connection requirements

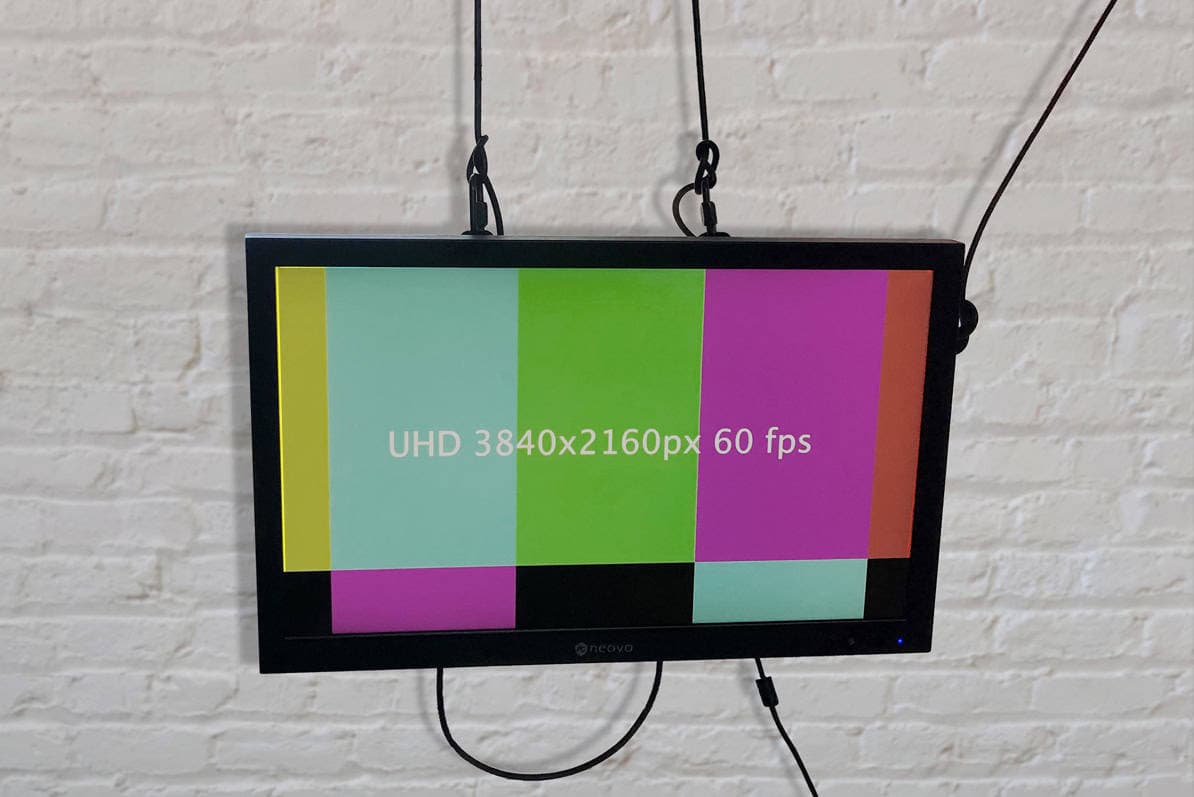

Resolution: Up to 4K@60Hz, 3D, Full HD 1920x1080
Armouring: Steel-armoured, high resistance to pressure and crushing
Cable: Extremely flexible, suitable for cable drums

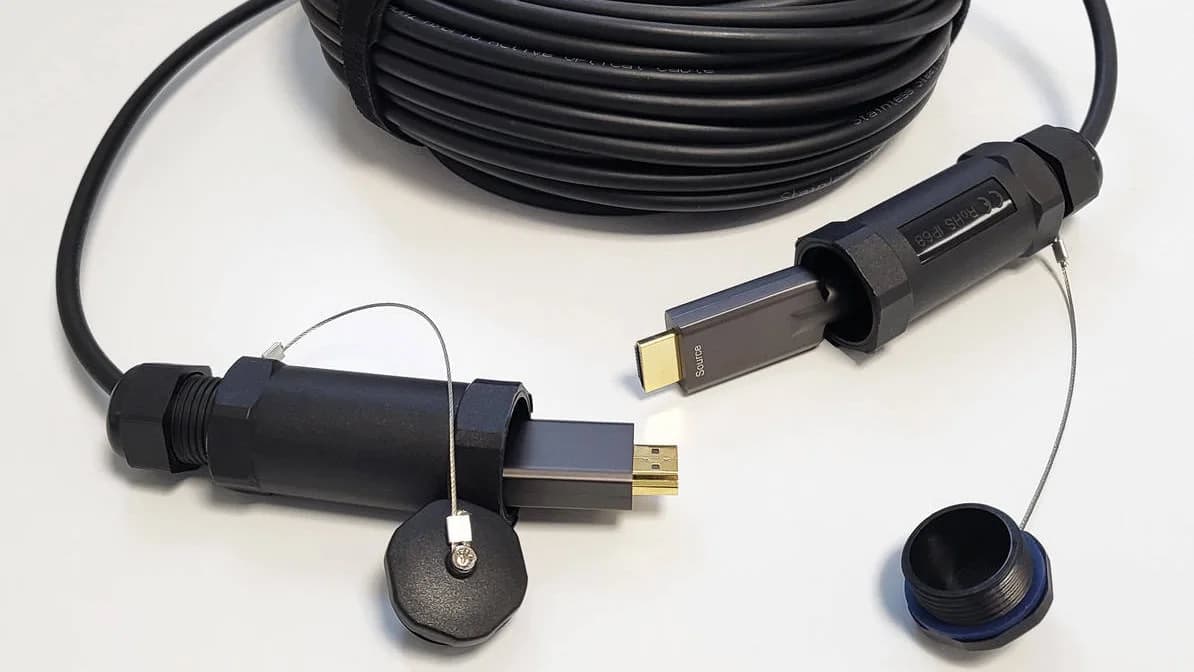

Protection: IP68 protective sleeves at both ends

Capabilities in this project

Signal
Hybrid

„We would like to thank the TTL team for their technical support and for implementing our wishes and specifications perfectly. The steel-armoured HDMI-A AOC 2.0 cable meets our expectations exactly. Its robustness makes it ideally suited to our purposes, and its quality has convinced us.“

Lars Wittig · Specialist Equipment Management Video
