How do you prevent signal dropouts on medical devices?

Locking connectors prevent signal dropouts due to movement or accidental disconnection – for example on HDMI and HDMI-to-DVI cables for image transmission between camera and monitor. Robust multiple screening and an EMC-resistant connector housing provide the EMC immunity required by medical environments – with data transmission up to 18 Gbit/s.

Are there isolators with 2 MOPP to IEC 60601-1?

Yes. For the medical electrical network, there are UL-certified RJ45 and USB isolators with galvanic isolation to IEC 60601-1 (2 MOPP). They protect sensitive devices from potential differences without impairing data transmission. We clarify which solution your device needs in the requirements analysis, based on your specifications and application requirements.

Which certifications apply to production?

Individual partners in our production network are certified to ISO 13485, among others – which certifications are available depends on the product, production partner and project requirements. Our production partners are audited as part of our supplier management. TTL Network GmbH itself is certified to ISO 9001 and ISO 14001. Depending on project requirements, first article inspection reports (FAI reports) and retained golden samples safeguard the quality of your series in the long term.

Medical Technology

Safe and durable products for sensitive applications

EMC-resistant, lockable image and data connections for medical devices.

Since 2001, TTL Network has been developing high-precision cables for medical technology that meet strict requirements for hygiene, precision and durability.

Added value: tested quality and reliability for medical applications.

Founded: 2001
Custom cable assemblies successfully realised: over 7,500
Well-known companies in industry & medical technology supported: over 1,500

Your requirements

EMC: EMC immunity as required by medical environments
Service life: Mechanical service life under frequent use and material resistance to disinfectants
Signal quality: EMC and signal quality according to IEC 60601-1-2
Quality: ISO 13485 at selected partners

Robustness and solutions

Robustness

StressTest method

Movement: Torsion and bending tests, including under climatic conditions
Connector: Mating cycle tests for durable connections
Durability: Ageing and climate cycling tests for long-term validation

Solution

Single cable: Assembled connection cable, also in custom lengths
Cable set: Customer-specific, also screened
Cable harness: Made to your drawing
Assembly: Integration of customer-supplied components

Typical connections

From image transmission between camera and monitor to the medical electrical network.

Image: HDMI and HDMI-to-DVI cables with locking
Screening: Robust multiple screening, EMC-resistant connector housing

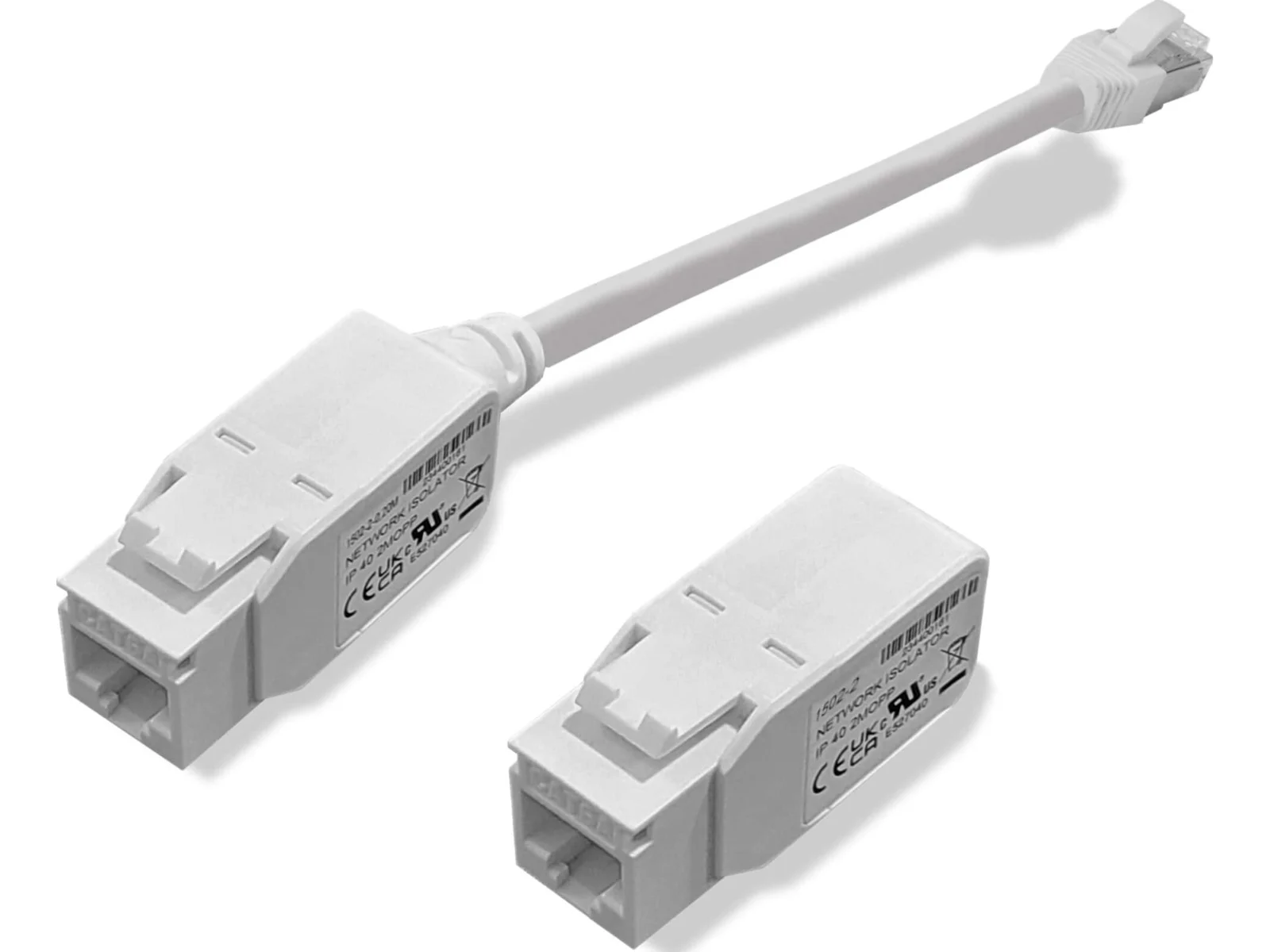

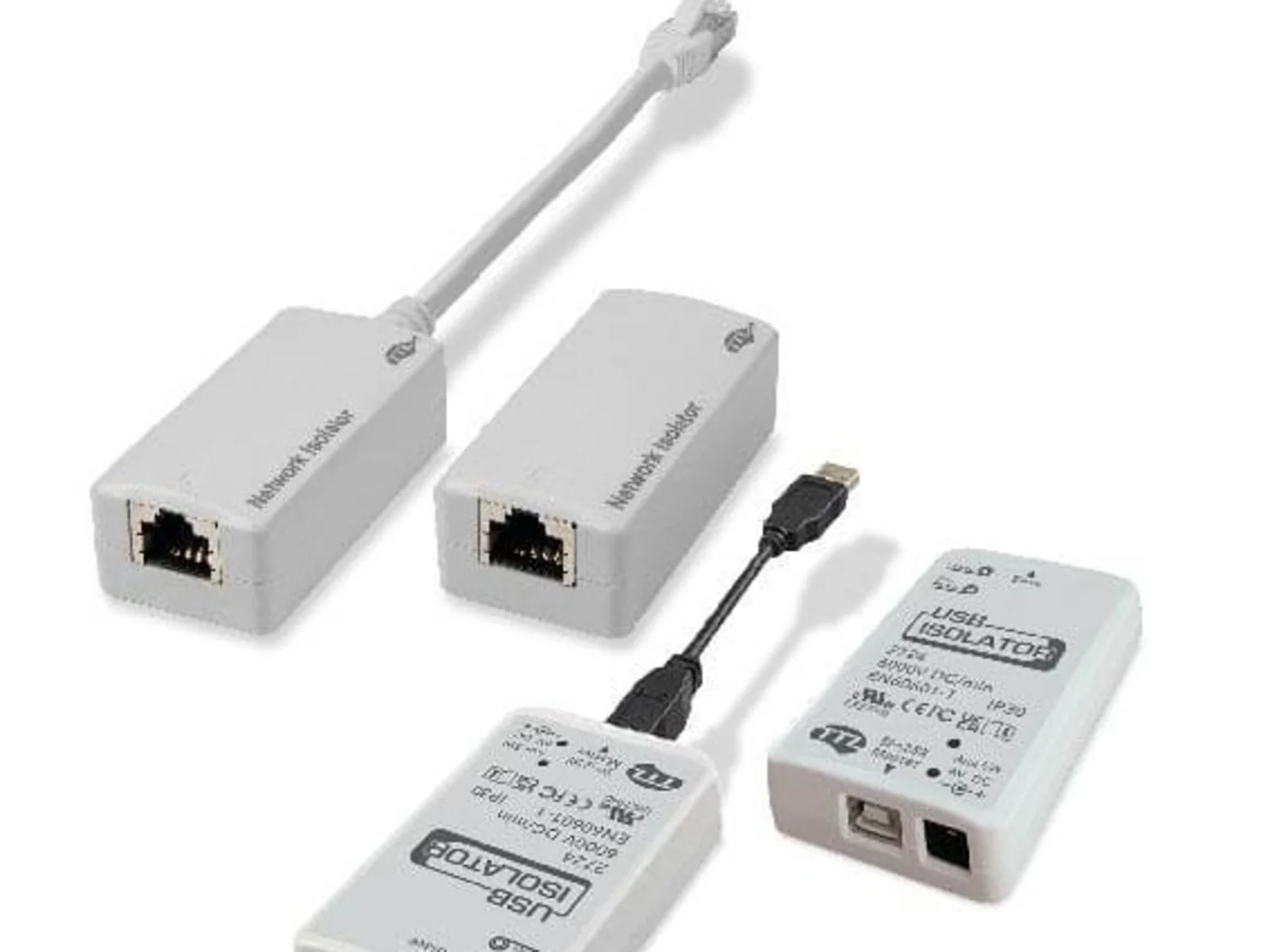

Isolation: UL-certified RJ45 and USB isolators
Data rate: Data transmission up to 18 Gbit/s
PCB: Flexible flat cables (FFC), temperature-resistant up to 105 °C

Examples of custom cable assemblies

Cables as they are built for applications in this industry – each one to the customer’s specification.

USB
USB Type-C with locking to USB Type-C with locking
USB-C cable with push-pull locking at both ends and a robust nylon braid.
- USB-C push-pull plug – USB-C push-pull plug
- Special push-pull locking mechanism
- Reversible USB-C connection
- Signal stability in harsh environments
- Robust nylon braid
Board-to-board
Flexible flat cable (FFC)

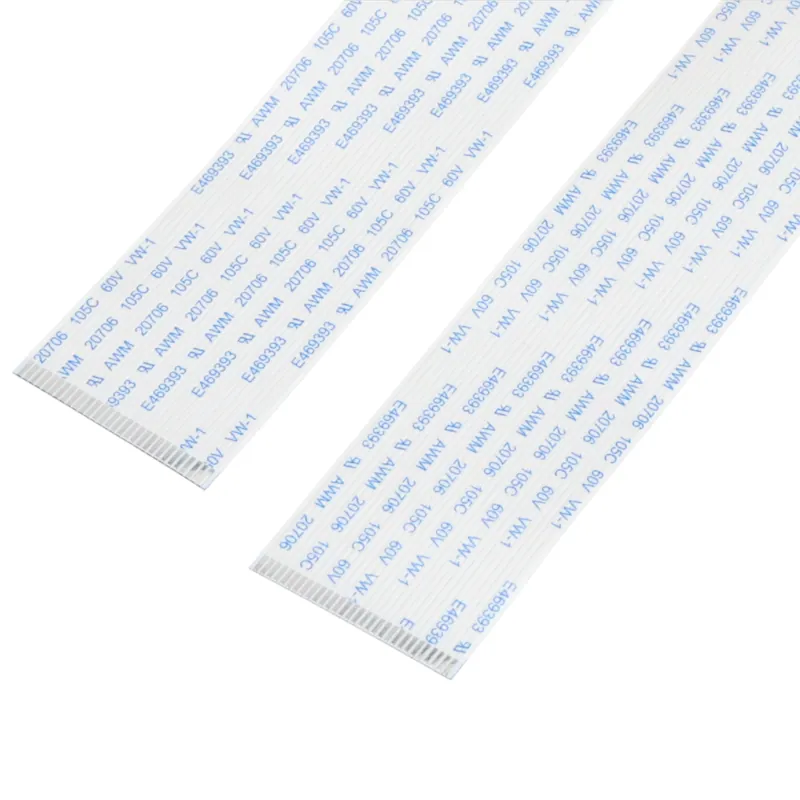

The cable plugs directly into ZIF (zero insertion force) or non-ZIF FPC/FFC connectors on circuit boards.
- UL certification AWM 20706
- Flexible
- Temperature-resistant up to 105 °C
USB

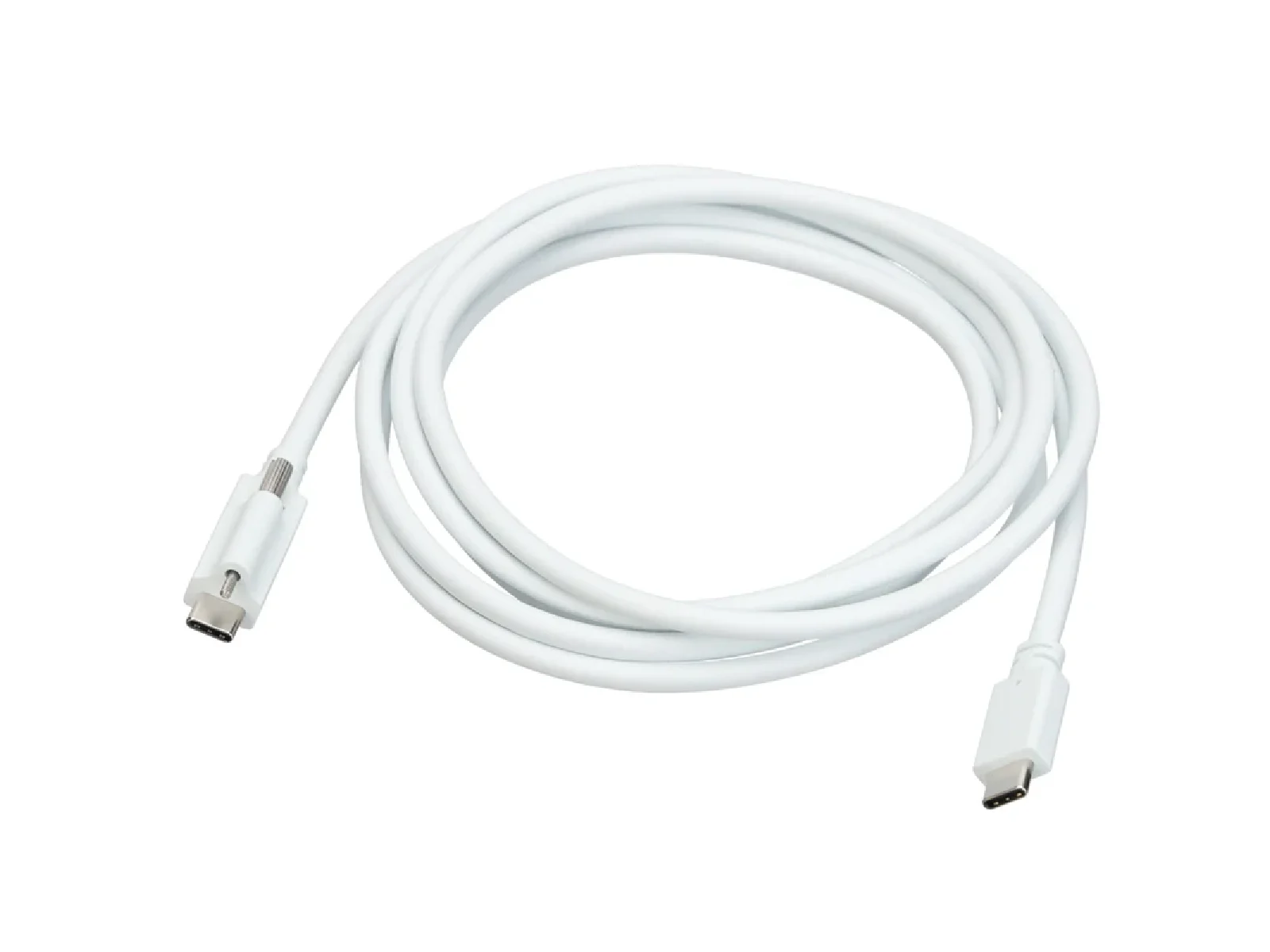

USB Type-C with locking to USB Type-C
USB-C cable with screw locking at one end and a flexible PVC jacket.
- USB-C plug with screw locking – USB-C plug
- High-quality, flexible PVC jacket
- Single-screw locking mechanism
- Reliable data and signal transmission
- Optimum screening of cable and connector

Request a project View all examples

Knowledge from this industry

Frequently asked questions

How do you prevent signal dropouts on medical devices?: Locking connectors prevent signal dropouts due to movement or accidental disconnection – for example on HDMI and HDMI-to-DVI cables for image transmission between camera and monitor. Robust multiple screening and an EMC-resistant connector housing provide the EMC immunity required by medical environments – with data transmission up to 18 Gbit/s.
Are there isolators with 2 MOPP to IEC 60601-1?: Yes. For the medical electrical network, there are UL-certified RJ45 and USB isolators with galvanic isolation to IEC 60601-1 (2 MOPP). They protect sensitive devices from potential differences without impairing data transmission. We clarify which solution your device needs in the requirements analysis, based on your specifications and application requirements.
Which certifications apply to production?: Individual partners in our production network are certified to ISO 13485, among others – which certifications are available depends on the product, production partner and project requirements. Our production partners are audited as part of our supplier management. TTL Network GmbH itself is certified to ISO 9001 and ISO 14001. Depending on project requirements, first article inspection reports (FAI reports) and retained golden samples safeguard the quality of your series in the long term.
