Machinery & Plant Engineering

Robust components for demanding industrial environments

Power, control and data connections for harsh machine halls and tight control cabinets.

TTL Network develops custom cable assemblies for machinery and plant engineering – reliable in series production and throughout the entire product life cycle.

Framework agreements with flexible call-offs from our central warehouse in Halle (Westfalen) give you planning security.

Founded: 2001
Custom cable assemblies successfully realised: over 7,500
Well-known companies in industry & medical technology supported: over 1,500

Your requirements

Installation: Extremely limited space inside housings or during installation
Mechanics: Strain relief, kink protection, resistance to repeated bending and torsion
EMC: Continuous screening of cables and connectors
Environmental conditions: Temperature, oil, chemicals

Robustness and solutions

Robustness

StressTest method

Torsion: Torsion and bending tests, including under climatic conditions
Environment: Ageing and climate cycling tests for long-term validation
Contact: Pin-to-pin connection tests
Distribution board: Surge voltage tests

Solution

Single cable: Assembled connection cable, also in custom lengths
Cable set: Customer-specific, also screened

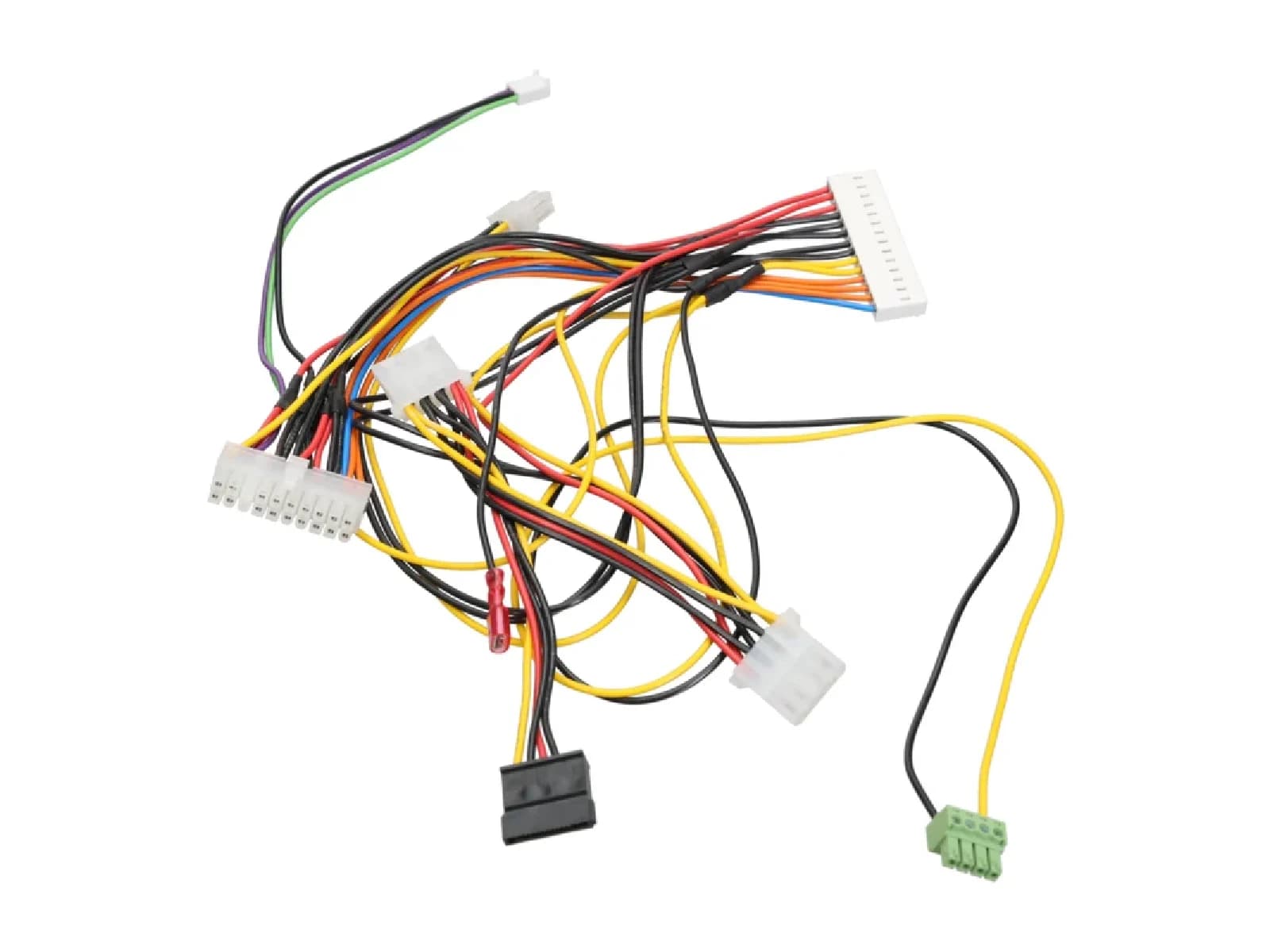

Cable harness: Made to your drawing
Assembly: Integration of customer-supplied components

Typical connections

From a single connection cable to a complete cable harness – made to your drawing.

Connectors: Plugs and sockets with quick-lock mechanism

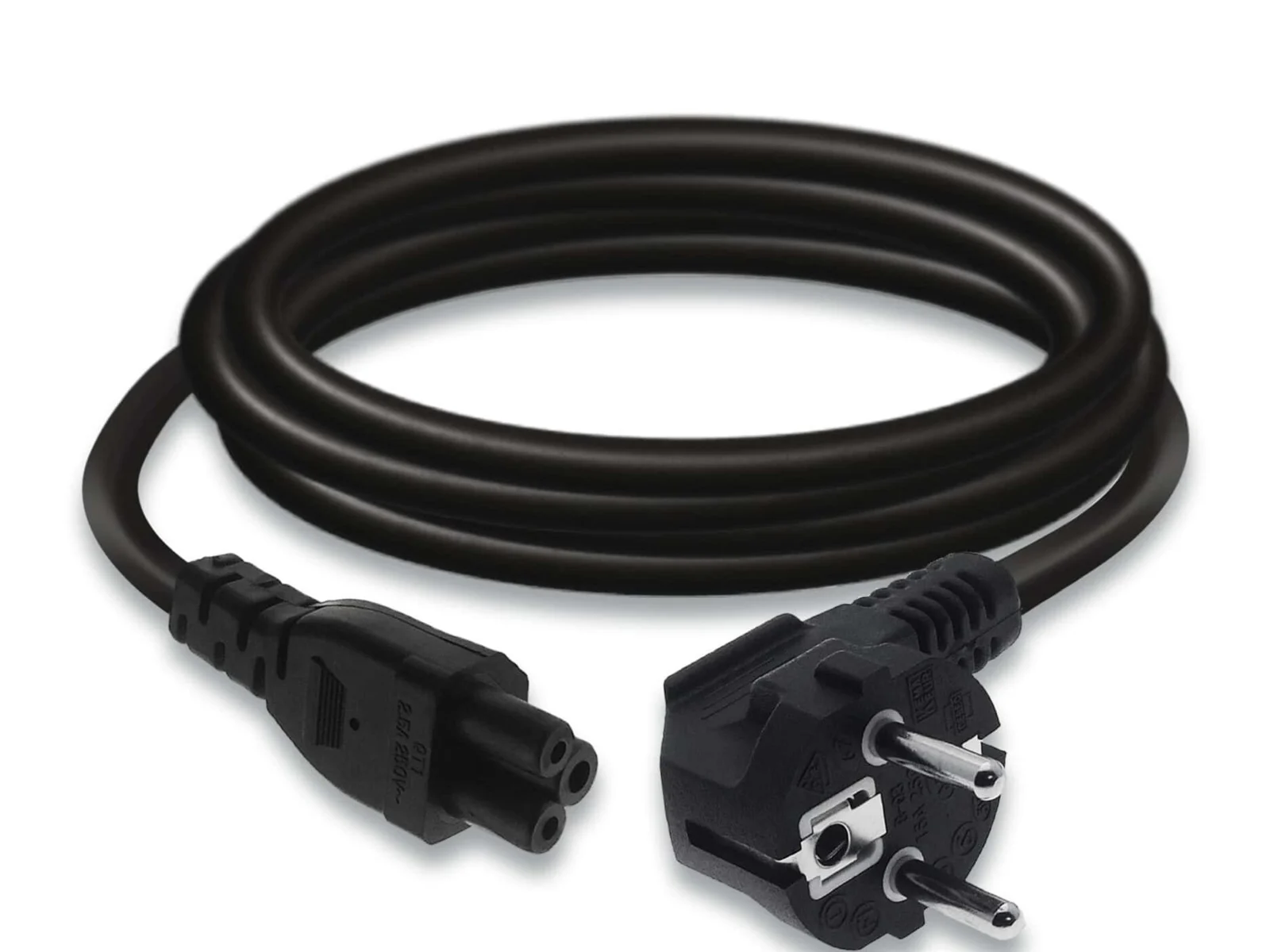

Power: Highly flexible UltraFlex power cables with a small bending radius

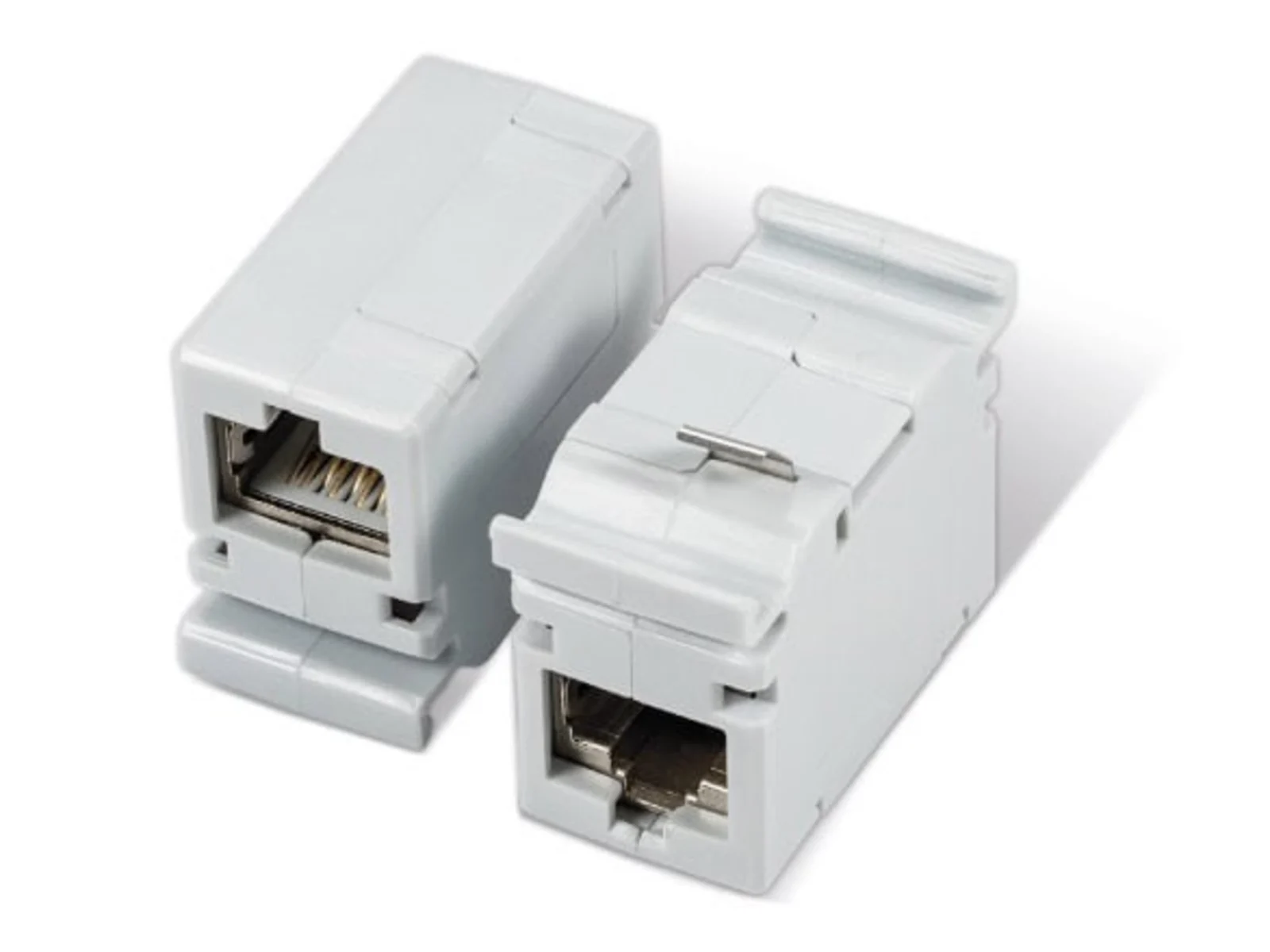

Control cabinet: Cat.6A feed-through connectors for the DIN rail

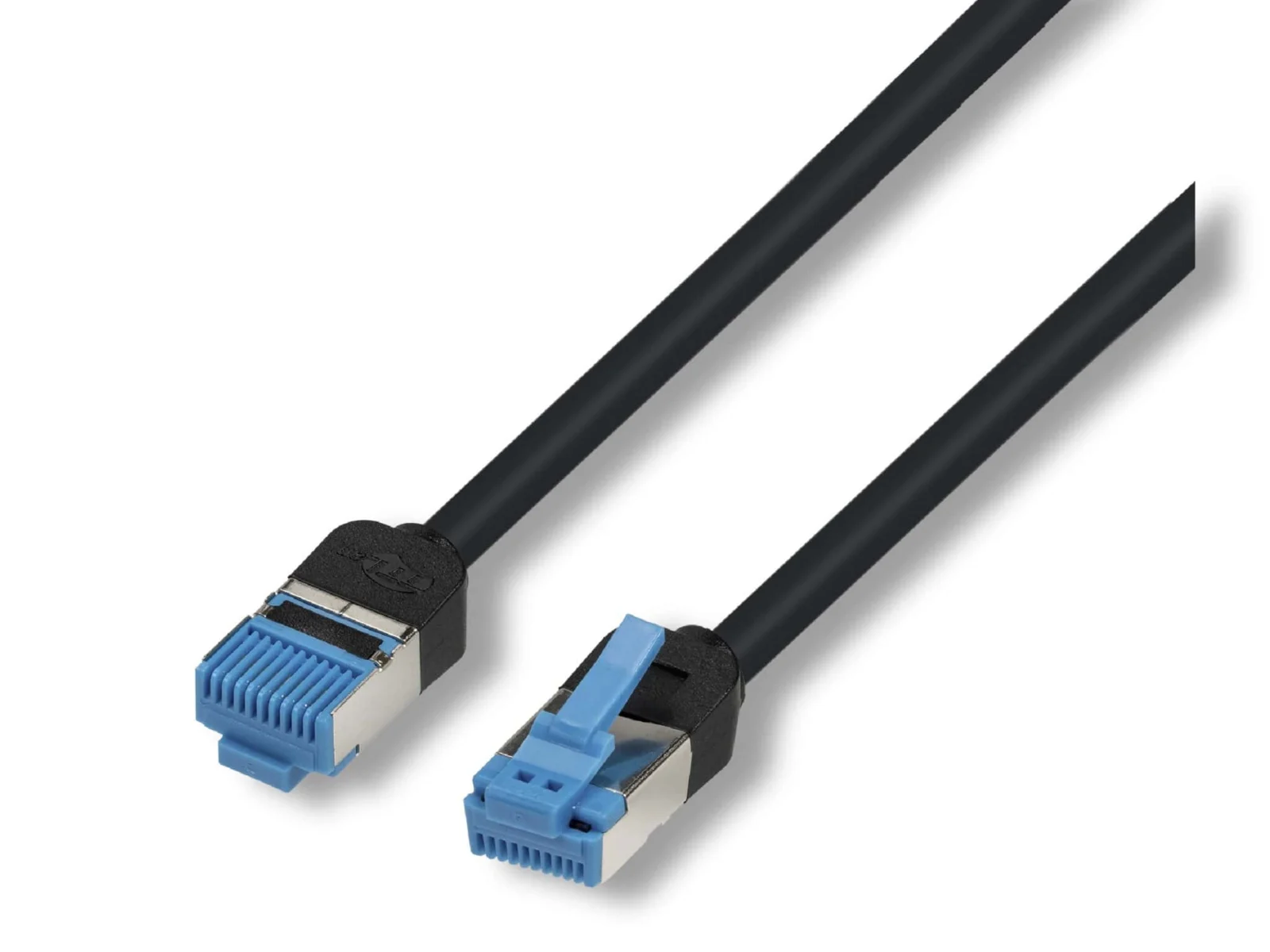

Distribution board: Space-saving Cat.6A patch cables with 6 kV surge voltage testing for electrical distribution boards
Panel mounting: USB and DisplayPort cables with built-in socket for panel mounting
PCB: Wire-to-board cables, ribbon and FFC cables right down to the PCB

Examples of custom cable assemblies

Cables as they are built for applications in this industry – each one to the customer’s specification.

DisplayPort
Mini DisplayPort to USB A for panel mounting
Hybrid connection solution for simultaneous video output and high-speed data synchronisation.
- Mini DisplayPort plug – USB 3.0 A socket
- Panel-mount cable
- Optimum screening of cable and connector
USB
USB Type-C with locking to USB A for panel mounting
Extension for the device front where there is hardly any space behind the panel.
- USB Type-C plug – USB 3.0 A socket
- Panel-mount cable
- USB-C angled at 90° with side screw locking
- Optimum screening of cable and connector
Circular connectors
M8 4-pin panel-mount socket to 4-pin pin header connector
Sensor connection through the enclosure wall, directly onto the board on the inside.
- M8 4-pin panel-mount socket – 4-pin pin header connector
- UL1061
Wire-to-board
Hirose DF13 to Hirose DF14 with earth connections
Crimp connection from Hirose DF13 to DF14, with ring terminals for earthing.
- Double-row Hirose DF13 crimp connector – single-row, ultra-low-profile Hirose DF14 crimp connector
- Firmly crimped ring terminals (earth lugs)
- Effective EMC protection
- Easy identification (multi-colour wiring)
Power
JST receptacle housing to two flat receptacles with ferrite and identification tag
Power cable from a 3-pin JST receptacle housing to two flat receptacles, with ferrite and identification tag.
- 3-pin JST receptacle housing – two flat receptacles
- Integrated EMI suppression
- Colour-coded cable routing
- UL11028
Board-to-board
Flexible flat cable (FFC)
The cable plugs directly into ZIF (zero insertion force) or non-ZIF FPC/FFC connectors on circuit boards.
- UL certification AWM 20706
- Flexible
- Temperature-resistant up to 105 °C

Request a project View all examples

Knowledge from this industry

Frequently asked questions

How do you ensure that series production matches the sample?: Depending on project requirements, at approval we prepare first article inspection reports (FAI reports) and retain golden samples for long-term quality assurance. In production, defined testing and approval processes support reproducible series quality – depending on the product, electrically, for example, with pin-to-pin connection tests and surge voltage tests, and mechanically with torsion and bending tests, including under climatic conditions.
Do you supply cable harnesses made to our drawing?: Yes. From a single connection cable to a complete cable harness, our audited production network makes it to your drawing. We also integrate customer-supplied components as part of assembly. We use connectors to industry standard, as complementary types or as individual custom designs, for example plugs and sockets with a quick-lock mechanism.
How predictable is resupply over the service life of a plant?: We support custom cable assemblies throughout the entire product life cycle. Framework agreements with flexible call-offs from our central warehouse in Halle (Westfalen) give you planning security, complemented by on-time delivery and comprehensive after-sales support. Our production network minimises production risks through diversification, and retained golden samples serve long-term quality assurance.
