TTLan Cat.6A keystone module 500 MHz / 10 Gbit
Its particularly compact keystone format of 19.2 × 14.7 mm allows dense, space-saving installation: for example, three keystone modules fit into a 50 × 50 mm wall outlet. Here the module can be combined with the cover plates of the switch ranges of all leading manufacturers. The die-cast zinc housing provides effective EMC protection in accordance with DIN EN 55022 through a 360° screen connection.
Specification:
- For cable AWG 27-22
- Compact design (19.2 × 14.7 mm)
- Contacts with 50µ gold plating
- Fast, tool-free assembly
- Fully screened
- Design-compatible
- >750 mating cycles
- GHMT certificate to ISO 11801
Brand new:

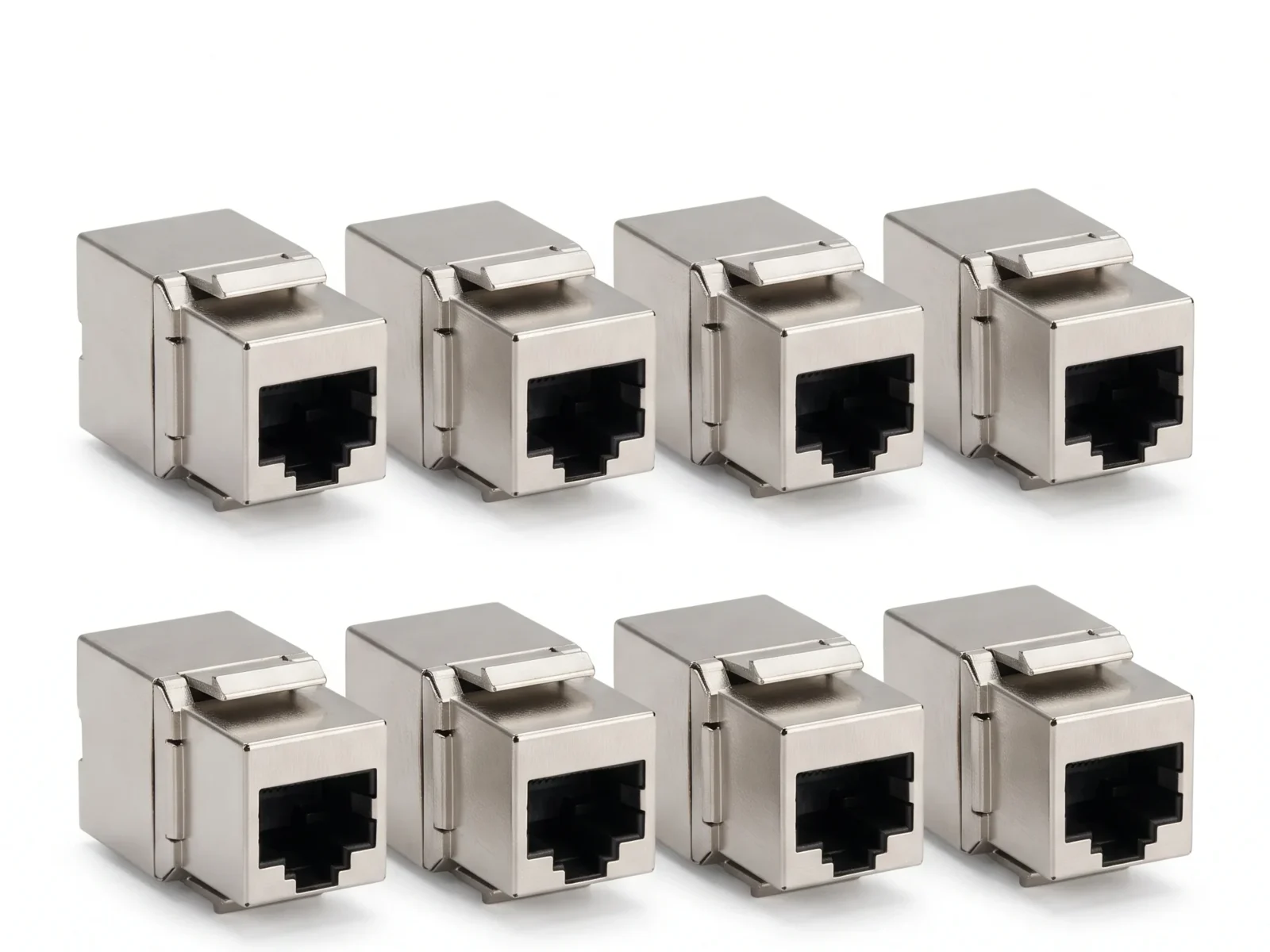

The module is now also available as a set of 8 in an environmentally friendly and user-friendly cardboard strip, including mounting material, a second cable comb for larger cable cross-sections and assembly instructions.
