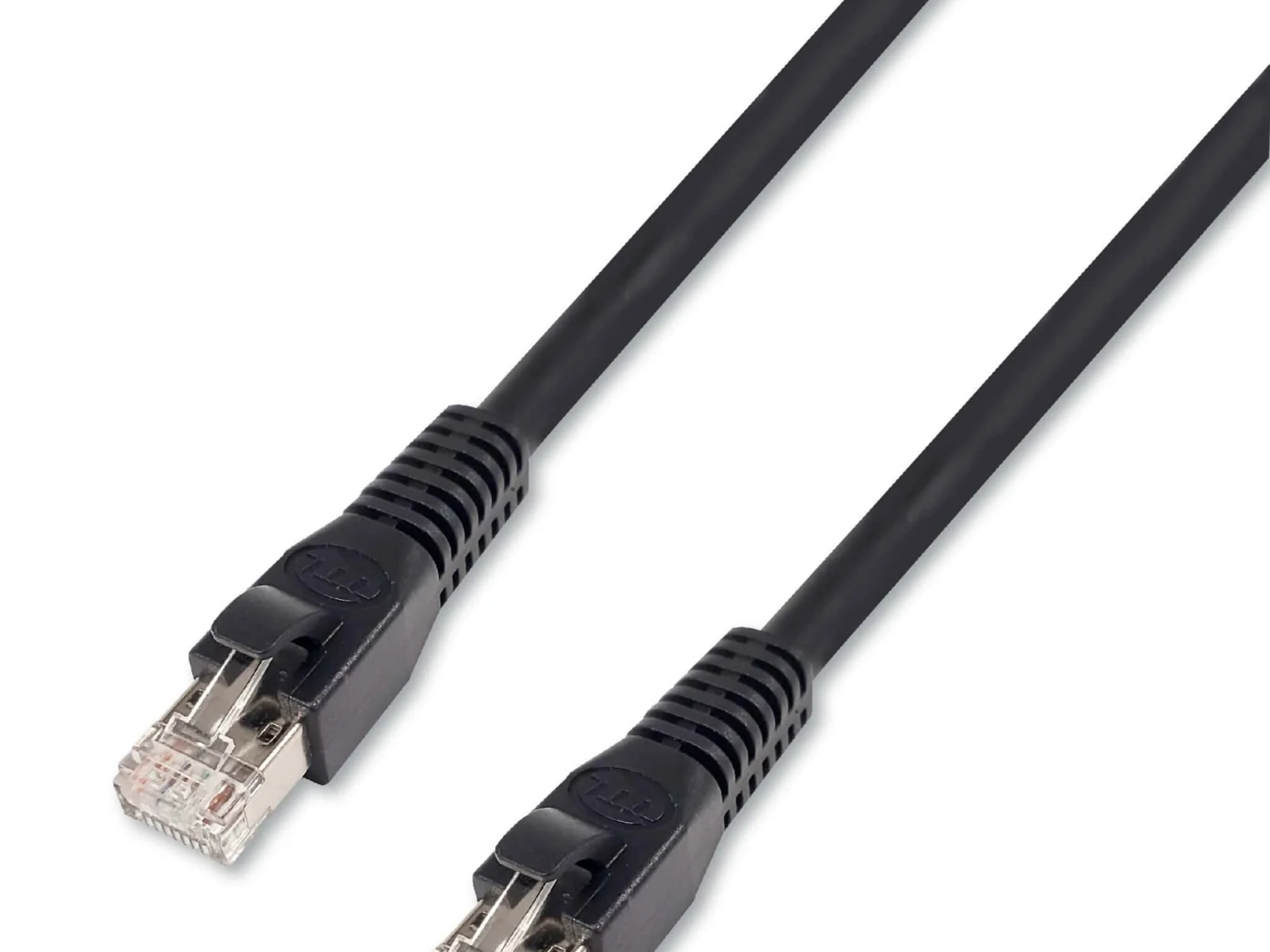

HDBaseT Enhanced Series connection cable
The cable sheath is made of a new, highly flexible special PVC with a particularly smooth surface texture that makes the cables easy to lay. The hard-wearing cable easily withstands high temperatures of up to +75 °C.
An extended, overmoulded bend relief boot reliably protects the cable/plug interface, so that damage and falling below the bend radius at the plug are practically ruled out. The integrated latch protection makes it easy to pull the cables back and contributes to the plug’s good usability. To tell cables of different lengths apart, we now also mark the length on the plug head.
The product is PoE-capable up to 100 watts and offers a bandwidth of 500 MHz for high transmission rates.
Specification:
- 2x RJ45 plug, 50µ gold plating and triple conductor contacting
- Special PVC sheath, highly flexible (bend radius 8x OD)
- Solid copper conductor (99 %)
- Cable construction S/FTP 4×2; AWG24/1; OD: 8.2 mm
- Temperature range: −20 °C to +75 °C
- Transmission: 500 MHz; 4K/60 Hz
- 4PPoE capable
- Available lengths: 0.5 to 30 m
- Colour: black, similar to RAL 9005
