Custom Cable Assemblies

Custom cables with circular connectors

Circular connectors for sensors and control systems: M8, M12 and M16 as well as multi-pin interfaces for enclosure mounting – as Y-splitters, in corrugated conduit or with a transition to board connectors.

Request a projectAll examples

What matters

  • Splitters

    Y-splitters with space-saving 90° angled connectors.

  • Mounting

    Panel-mount sockets and multi-pin interfaces for enclosure mounting, securely locked.

  • Approval

    UL-listed cables, for example UL1061, UL2464 and UL20549.

  • Transitions

    To board connectors, device connectors or as splitters.

Examples

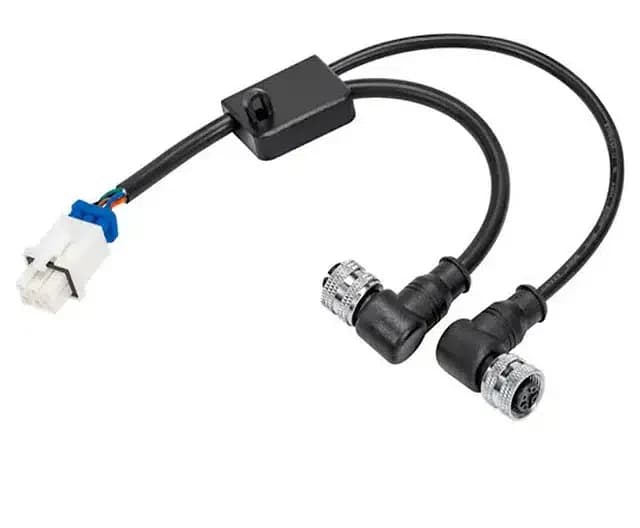

  • Splitter cable with connector housing and two angled M12 sockets

    Rectangular socket housing to 2× M12 socket connectors

    Y-splitter from a 6-pin socket housing to two angled M12 socket connectors.

    • Rectangular 6-pin socket housing – M12 5-pin socket connector and M12 6-pin socket connector
    • Efficient Y-splitter architecture
    • Space-saving 90° angled connectors
    • UL20549

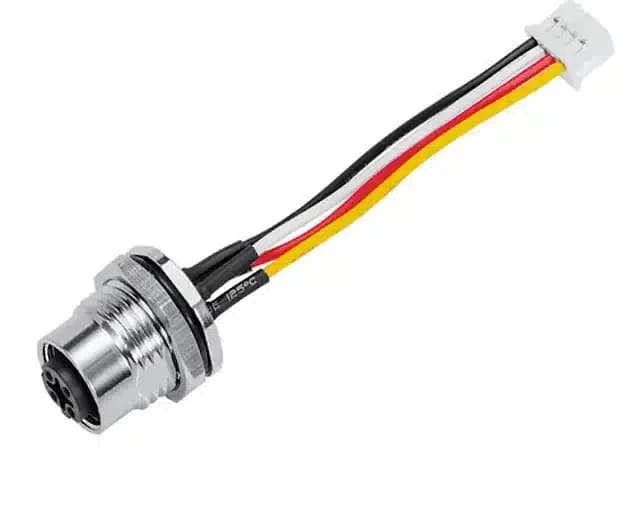

  • M8 panel-mount socket with four colour-coded single cores and connector housing

    M8 4-pin panel-mount socket to 4-pin pin header connector

    Sensor connection through the enclosure wall, directly onto the board on the inside.

    • M8 4-pin panel-mount socket – 4-pin pin header connector
    • UL1061

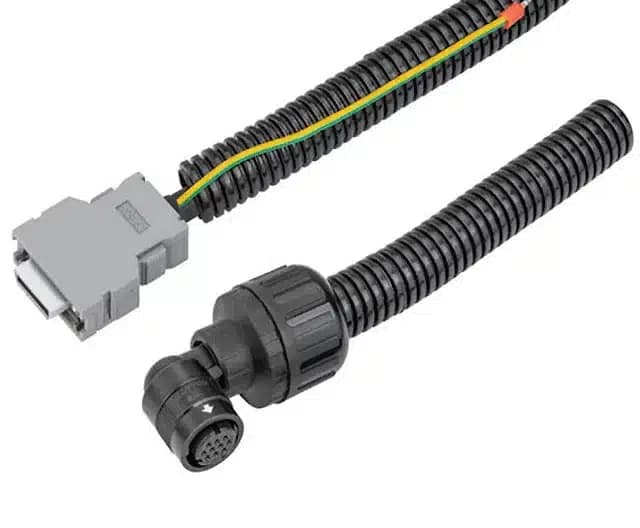

  • Control cable in corrugated conduit with device connector and angled M16 socket

    M16 circular connector socket to SCSI plug

    Control cable in corrugated conduit, from a 14-pin device connector to an angled M16 socket.

    • M16 circular connector socket angled at 90° – SCSI 14-pin (HPCN) plug
    • Integrated corrugated conduit protection
    • Precise signal transmission
    • UL2464

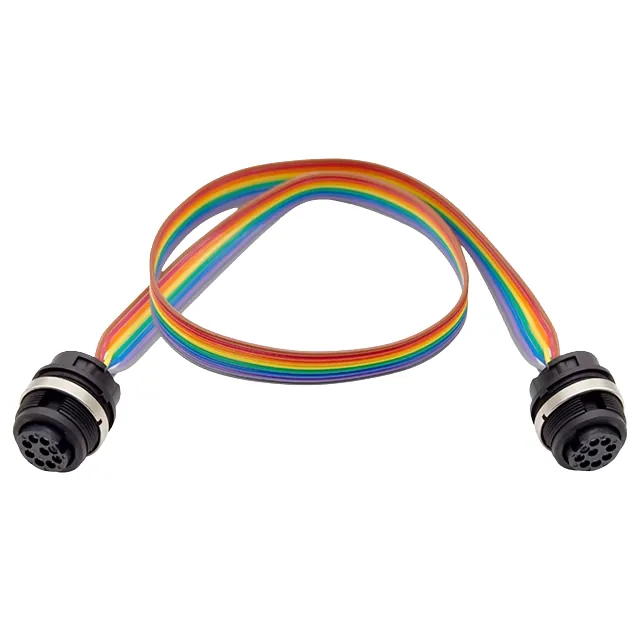

  • Colour-coded ribbon cable between two multi-pin panel-mount sockets

    Multi-pin interface to multi-pin interface for enclosure mounting

    Connection of two 9-pin multi-pin interfaces for enclosure mounting, with space-saving cable routing.

    • 9-pin multi-pin interface – 9-pin multi-pin interface
    • Space-saving and flexible cable routing
    • Secure locking
  • DC barrel connector and aviation-style circular connector in a metal housing

    Power

    DC barrel connector to aviation-style circular connector

    Power cable from a DC barrel connector to a 2-pin aviation-style circular connector with screw locking.

    • DC barrel connector – 2-pin aviation-style circular connector
    • Vibration-proof screw locking
    • Robust metal housing
    • Flexible and durable sheath

Used in these industries

Other interfaces

Can’t find your cable?

The examples show only a selection. Send us a drawing, sample or requirement – we will check how your connection can be realised through our production network.
