Custom Cable Assemblies
Custom wire-to-board cables
Cables to the circuit board to your specification: with Hirose, JAE, JST and micro-coaxial connectors, as ribbon cables or with ring terminals for earthing – for wiring inside the device and data transmission to the display.
What matters
Connectors
Hirose DF13 and DF14, JAE 40-pin, micro-coaxial with 0.4 mm pitch, pin header and FFC connectors.
Display signals
LVDS and eDP for data transmission to the LCD screen.
EMC
Firmly crimped ring terminals as earth lugs and exposed screen areas.
Approval
Cables to UL20276 and UL1061.
Examples

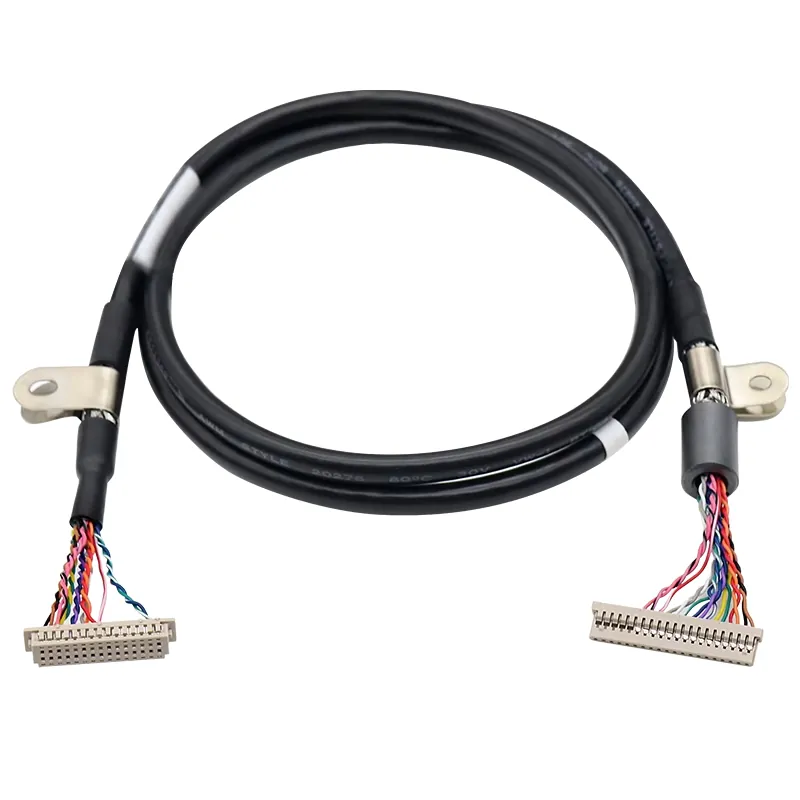

Hirose DF13 to Hirose DF14 with earth connections
Crimp connection from Hirose DF13 to DF14, with ring terminals for earthing.
- Double-row Hirose DF13 crimp connector – single-row, ultra-low-profile Hirose DF14 crimp connector
- Firmly crimped ring terminals (earth lugs)
- Effective EMC protection
- Easy identification (multi-colour wiring)

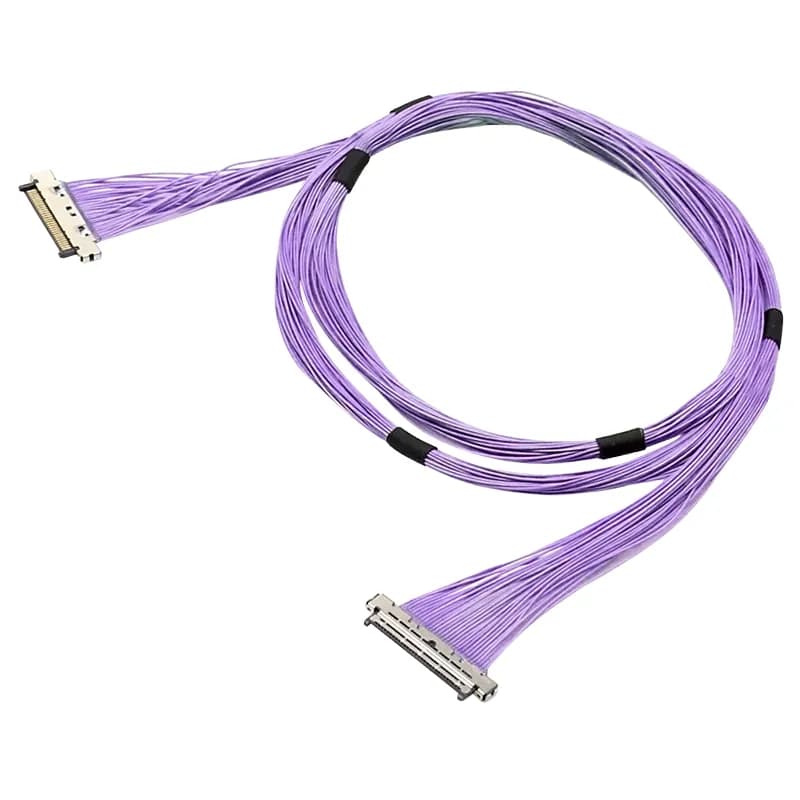

Micro-coaxial connector to micro-coaxial connector
Cable with micro-coaxial connectors at 0.4 mm pitch for LVDS and eDP signals.
- Micro-coaxial connector – micro-coaxial connector, 0.4 mm pitch
- LVDS (Low-Voltage Differential Signaling)
- eDP (Embedded DisplayPort)
- Excellent signal integrity in high-speed transmission
- Protection against EMI/RFI

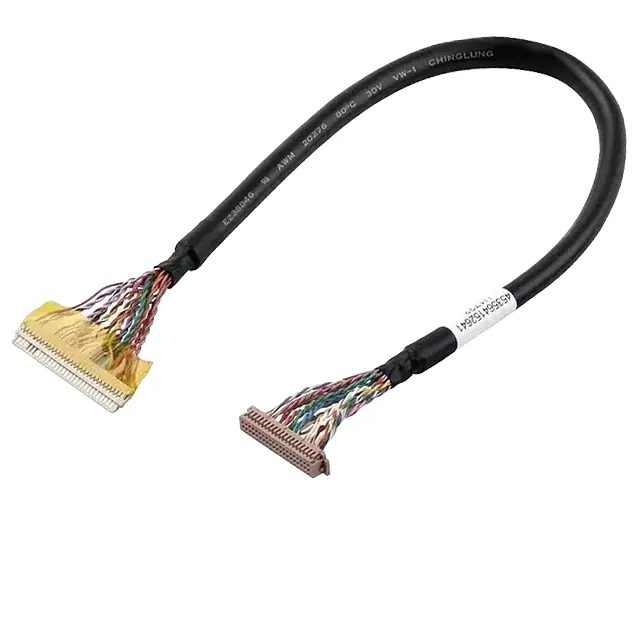

FFC connector to socket connector
Display cable from a 30-pin FFC connector to a double-row 30-pin socket connector, for LVDS.
- Single-row 30-pin FFC or crimp connector – double-row 30-pin socket connector
- Robust mechanical outer sheath
- Secure strain relief and labelling
- Stable LVDS data transmission to the LCD screen

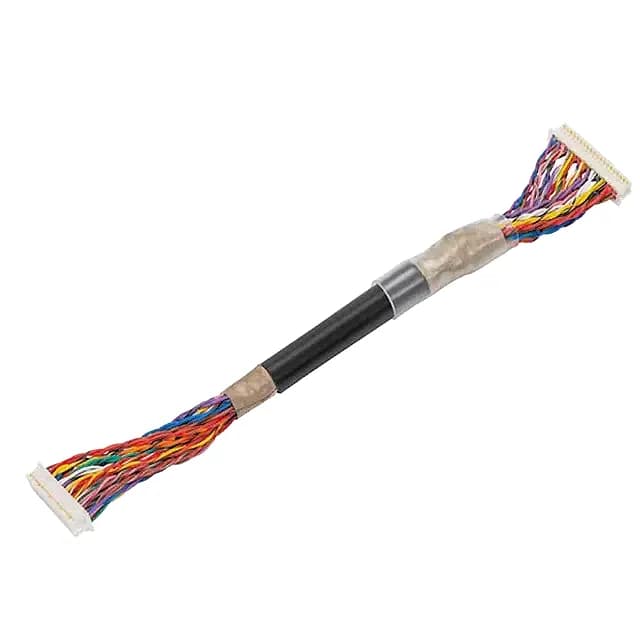

JAE 40P to JAE 40P, exposed screen area
LVDS cable with two 40-pin JAE connectors and an exposed screen area.
- JAE 40-pin connector – JAE 40-pin connector
- High-speed data transmission and signal integrity
- UL20276 compliance (AWM Style 20276)
- Stable LVDS data transmission to the LCD screen

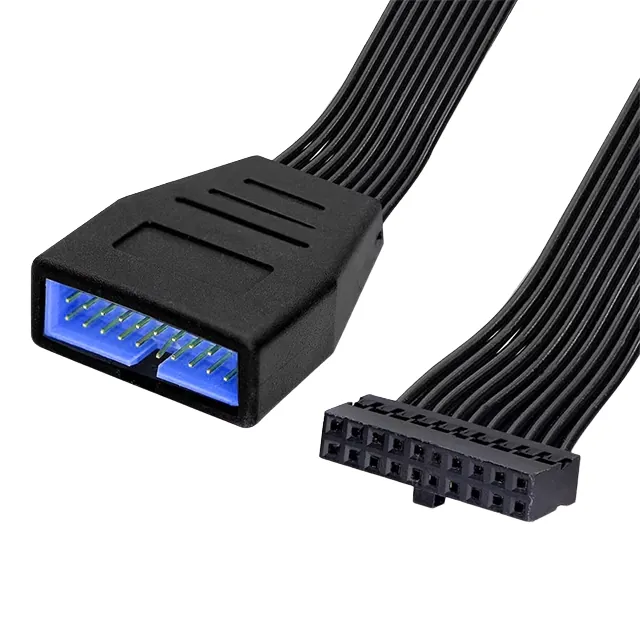

Pin header plug to pin header connector
Ribbon cable to the USB 3.0 standard, from an overmoulded 20-pin pin header plug to a 20-pin pin header connector.
- Overmoulded 20-pin pin header plug – 20-pin pin header connector
- Ribbon cable design
- USB 3.0 standard
- Black and blue colour scheme
M8 panel-mount socket for enclosure mounting to two pin header connectors
An 8-pin M8 panel-mount socket distributes signal and power to a 6-pin and a 2-pin JST housing.
- M8 8-pin circular connector – 1× 6-pin JST housing and 1× 2-pin JST housing
- Intelligent separation of signal and power
- Flexible and space-saving single-core routing
- Dust and water protection with front mounting

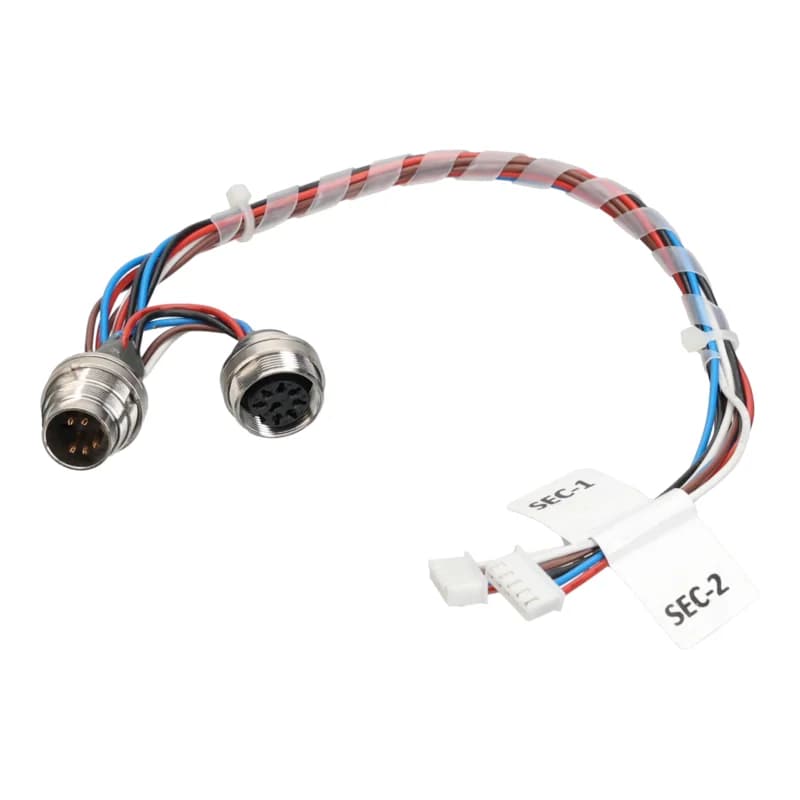

Pre-assembled cable harness (Y-cable/adapter cable)
Y-cable from an M16 panel-mount plug and an M12 panel-mount socket to two 5-pin pin header connectors.
- M16 5-pin panel-mount plug + M12 8-pin panel-mount socket – 2× 5-pin pin header connector
- Parallel routing of data and control signals
- Clear labelling

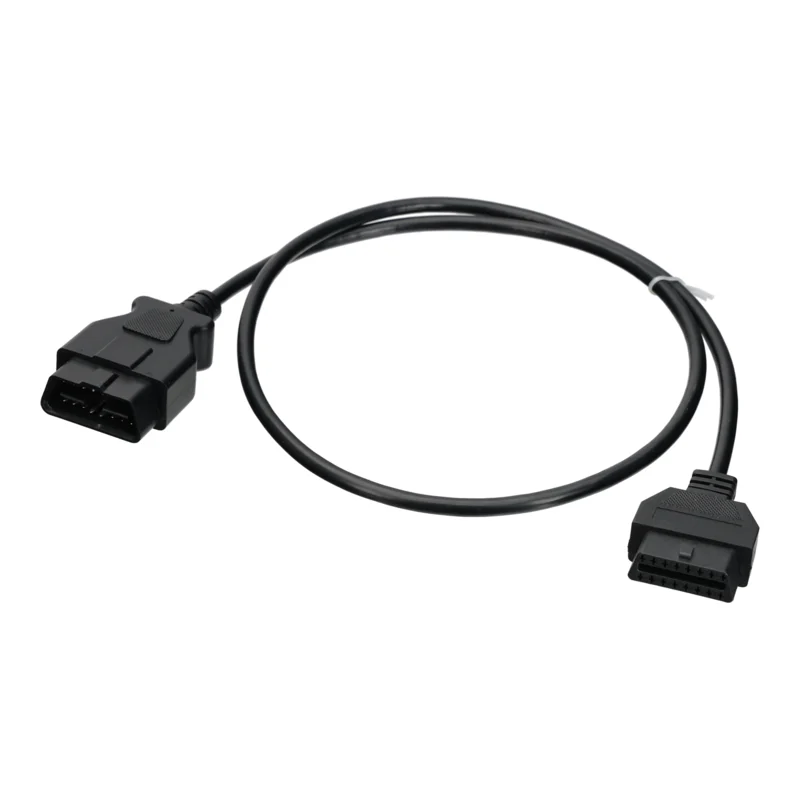

OBD2 plug to OBD2 socket extension cable
Extension for the 16-pin OBD2 interface, with standardised full pin assignment.
- OBD2 16-pin plug – OBD2 16-pin socket
- Plug & play
- Flexible round cable construction
- Standardised full 16-pin assignment
Ring terminal to Molex Micro-Fit with PG cable gland
System cable from a ring terminal to a 2-pin Molex Micro-Fit housing, with a PG cable gland for the enclosure feed-through.
- Ring terminal (eyelet) – Molex Micro-Fit 3.0 2-pin receptacle housing
- Protection against mismating (polarisation)
- Pre-assembled system cable
- Industrial-grade certification (AWM 2517)
- Dust- and watertight enclosure feed-through

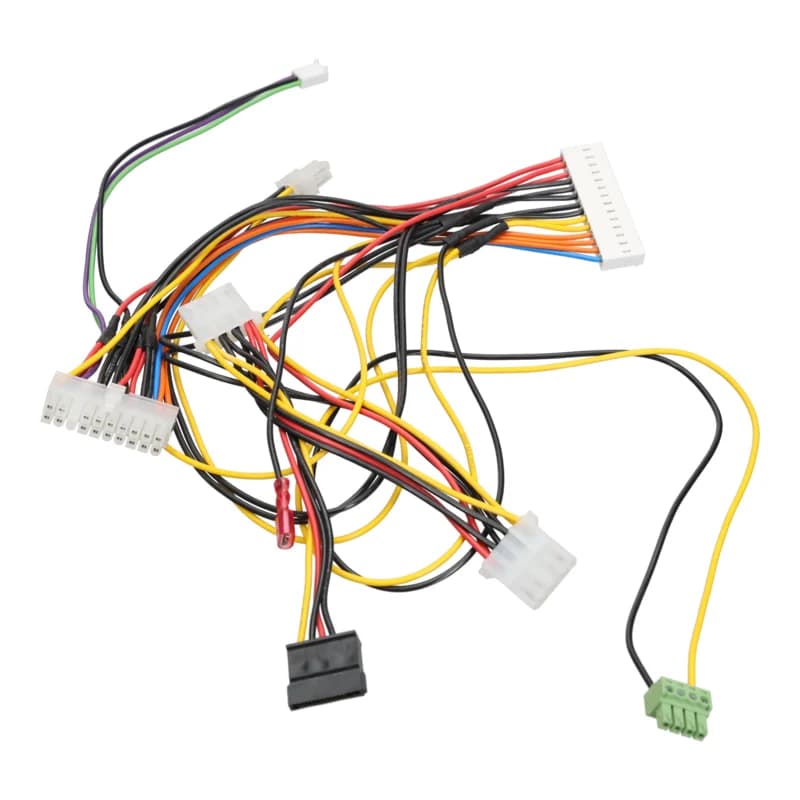

Adapter cable harness
Cable harness with ATX, SATA, Molex and PCIe connectors to ribbon cable connector, screw terminal block and flat connectors.
- ATX main power connector, SATA power connector, Molex connectors, EPS/PCIe, ribbon cable connector, screw terminal block, flat connectors
- Multifunctional hybrid construction
- Colour-coded cable harness
- Modular
- Integrated cable splices with heat-shrink tubing

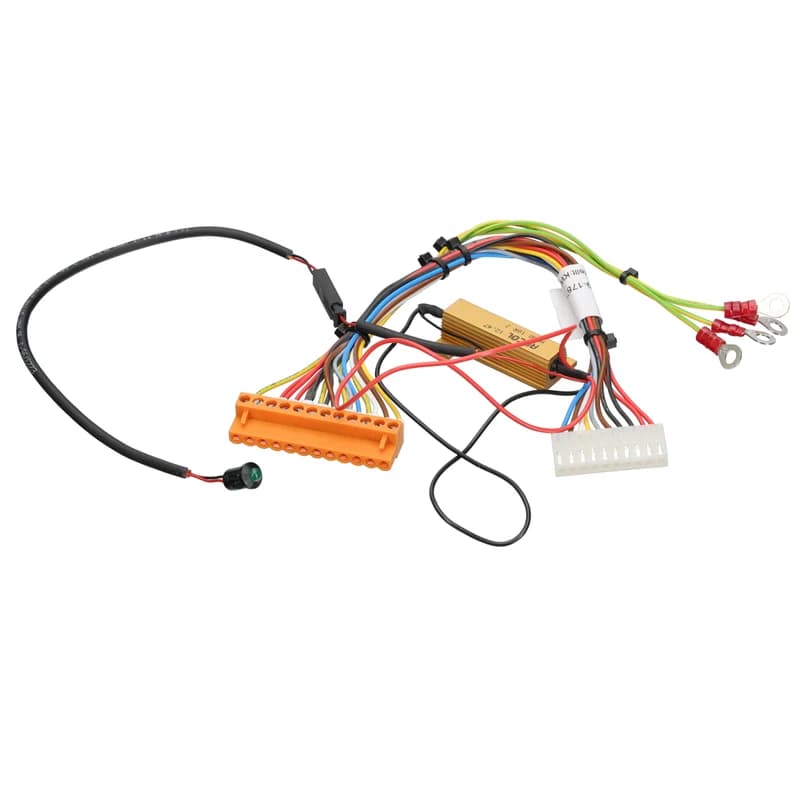

Special cable harness with integrated power resistor and indicator light
Cable harness with a power resistor, green LED indicator, rectangular connector and ring terminals.
- 12-pin terminal block connector – 10-pin crimp connector, 4× ring terminal, green LED indicator, integrated power resistor
- Status monitoring
- Structured cable bundling
- Interface bridge
Multi-pin interface to DC socket, 4-pin Dupont and USB A for enclosure mounting
A multi-pin interface branches out to a DC socket, a 4-pin Dupont connector and a USB-A socket for enclosure mounting.
- Multi-pin interface connector – DC socket, 4-pin Dupont connector, USB 3.0 A socket
- USB 3.0 Type-A socket with threaded housing for panel mounting
- UART connection for stable 3.3 V TTL signal processing
Rectangular socket housing to 2× M12 socket connectors
Y-splitter from a 6-pin socket housing to two angled M12 socket connectors.
- Rectangular 6-pin socket housing – M12 5-pin socket connector and M12 6-pin socket connector
- Efficient Y-splitter architecture
- Space-saving 90° angled connectors
- UL20549
M8 4-pin panel-mount socket to 4-pin pin header connector
Sensor connection through the enclosure wall, directly onto the board on the inside.
- M8 4-pin panel-mount socket – 4-pin pin header connector
- UL1061
JST receptacle housing to two flat receptacles with ferrite and identification tag
Power cable from a 3-pin JST receptacle housing to two flat receptacles, with ferrite and identification tag.
- 3-pin JST receptacle housing – two flat receptacles
- Integrated EMI suppression
- Colour-coded cable routing
- UL11028
Can’t find your cable?
The examples show only a selection. Send us a drawing, sample or requirement – we will check how your connection can be realised through our production network.
