Custom DisplayPort cables

• Screening

  Foil and braided screen, up to triple screening for demanding EMC requirements.

• Video signal

  8K at 60 Hz, with ferrites for stable image transmission.

• Locking

  Latching plugs and screw-mounted panel sockets.

• Transitions

  To D-Sub, USB, RS232 or pin header connectors.

•

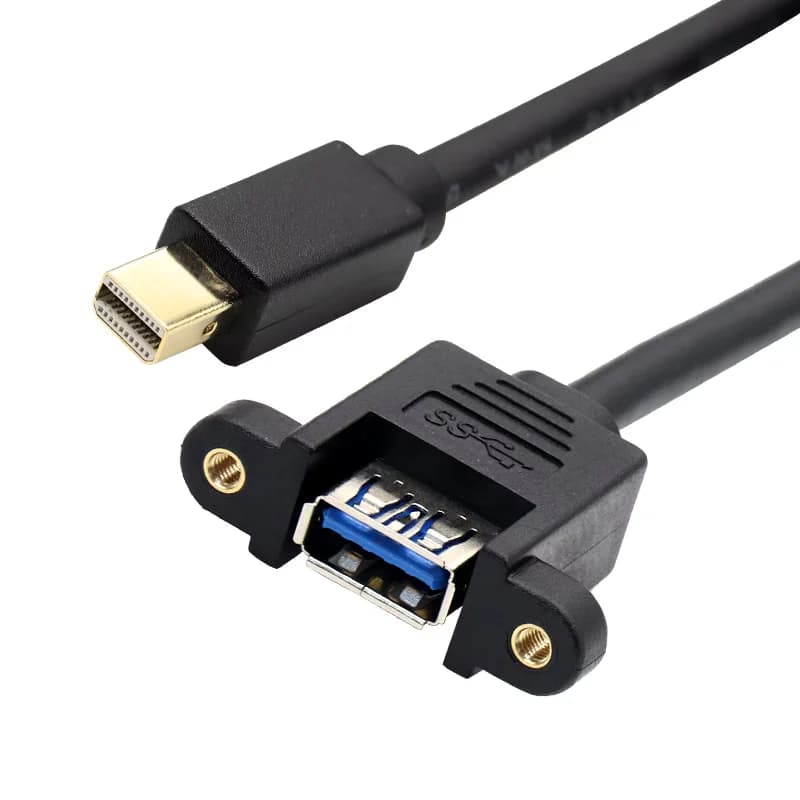

  Mini DisplayPort to USB A for panel mounting

  Hybrid connection solution for simultaneous video output and high-speed data synchronisation.

  • Mini DisplayPort plug – USB 3.0 A socket
  • Panel-mount cable
  • Optimum screening of cable and connector
•

  DisplayPort to D-SUB

  Connection cable for industrial monitors with low attenuation for latency-free industrial video.

  • DisplayPort plug – D-SUB 15-pin socket
  • Vibration-resistant thanks to screw locking
  • Optimum screening of cable and connector
  • Low attenuation
•

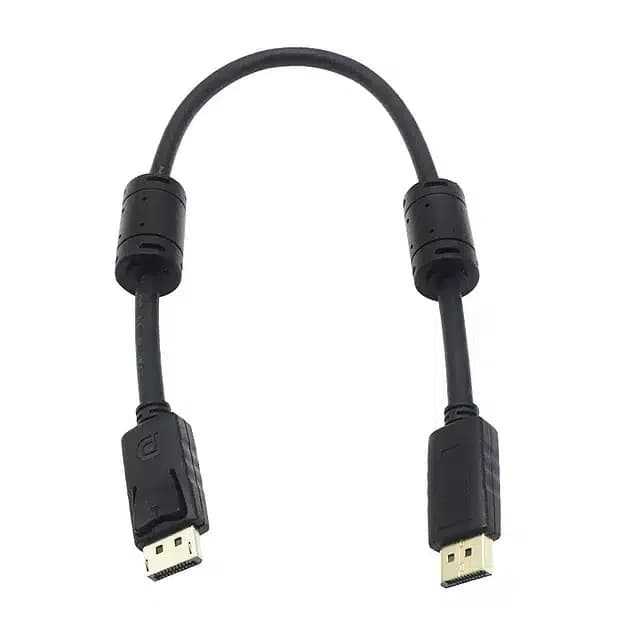

  DisplayPort to DisplayPort with ferrites

  Monitor connection cable with ferrites that ensure more stable image transmission.

  • DisplayPort plug – DisplayPort plug
  • 8K signal at 60 Hz
  • Optimum screening of cable and connector
  • Stable image transmission
•

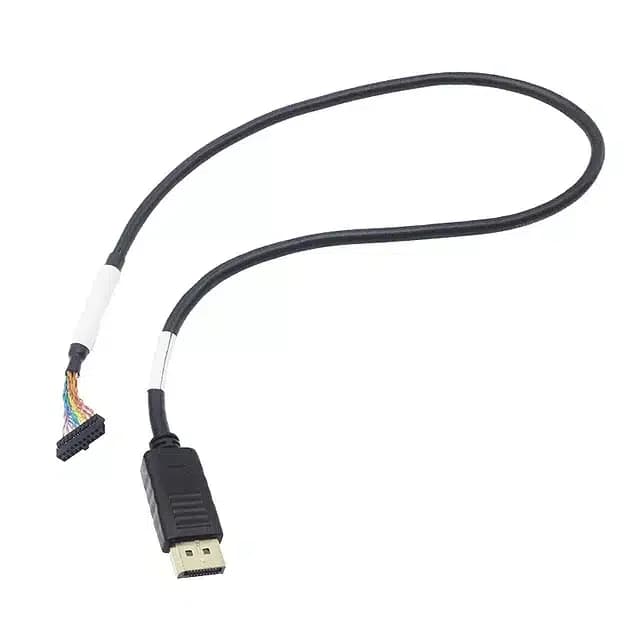

  DisplayPort to data connector

  Connection solution for stable industrial signal transmission that enables control of older equipment and data synchronisation without delay.

  • DisplayPort plug – 20-pin pin header connector
  • Integrated converter
  • RS232 serial interface
•

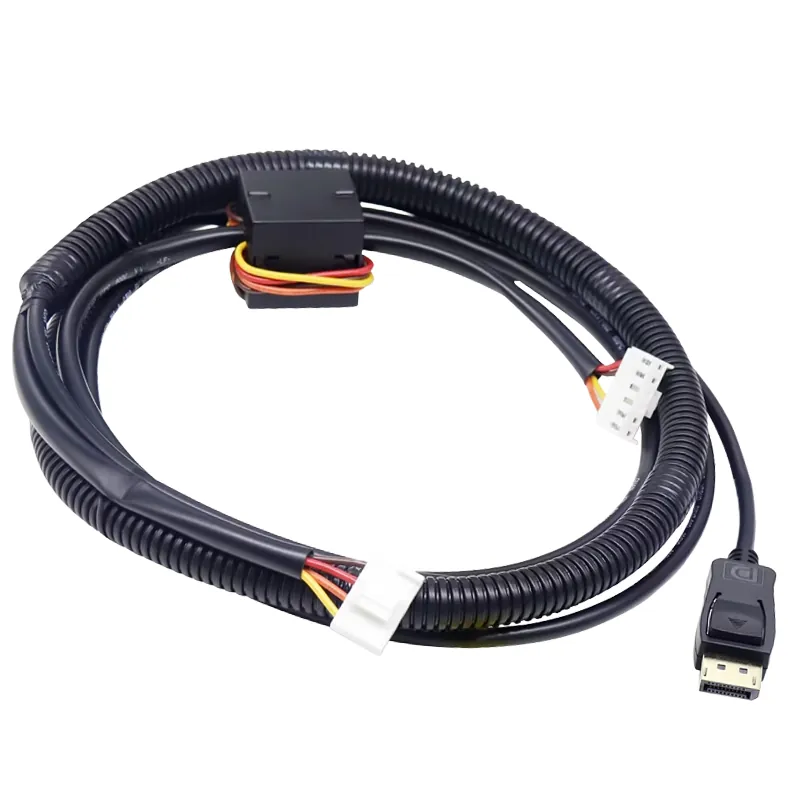

  DisplayPort to two data connectors with ferrite

  DisplayPort cable with ferrite that splits into two 6-pin pin header connectors.

  • DisplayPort plug – 2× 6-pin pin header connector
  • Optimum screening of cable and connector
  • Board to wire
  • Precision-made 24 AWG cable

Standard products with this interface are available in our online shop. To the online shop ↗
