Custom Cable Assemblies

Custom power cables

Cables for power supply to your specification: from a DC barrel connector to circular connectors, from a JST housing to flat receptacles or with separate routing of signal and power – colour-coded and locked where the application requires it.

Request a projectAll examples

What matters

  • Connectors

    DC barrel connectors, aviation-style circular connectors, JST housings and flat receptacles.

  • Locking

    Vibration-proof screw locking in a robust metal housing.

  • Interference suppression

    Ferrite for EMI suppression, colour-coded cable routing.

  • Labelling

    Identification tag on the cable.

Examples

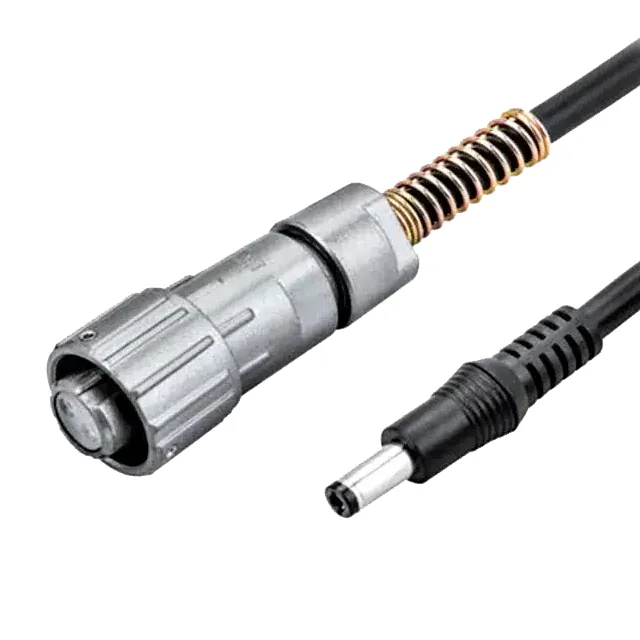

  • DC barrel connector and aviation-style circular connector in a metal housing

    DC barrel connector to aviation-style circular connector

    Power cable from a DC barrel connector to a 2-pin aviation-style circular connector with screw locking.

    • DC barrel connector – 2-pin aviation-style circular connector
    • Vibration-proof screw locking
    • Robust metal housing
    • Flexible and durable sheath

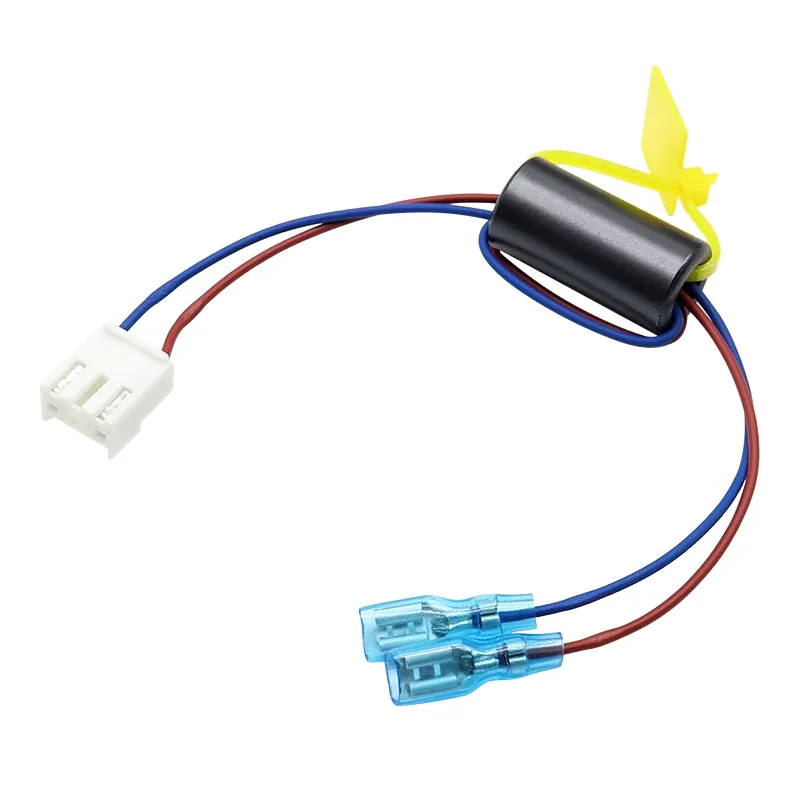

  • Two-core cable with JST receptacle housing, ferrite, identification tag and two blue flat receptacles

    JST receptacle housing to two flat receptacles with ferrite and identification tag

    Power cable from a 3-pin JST receptacle housing to two flat receptacles, with ferrite and identification tag.

    • 3-pin JST receptacle housing – two flat receptacles
    • Integrated EMI suppression
    • Colour-coded cable routing
    • UL11028

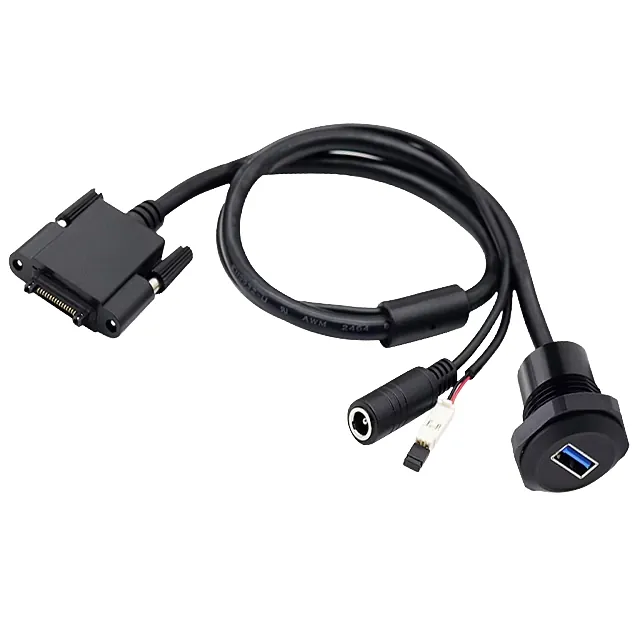

  • Branched cable with multi-pin connector, DC socket, Dupont connector and USB-A socket in a threaded housing

    USB

    Multi-pin interface to DC socket, 4-pin Dupont and USB A for enclosure mounting

    A multi-pin interface branches out to a DC socket, a 4-pin Dupont connector and a USB-A socket for enclosure mounting.

    • Multi-pin interface connector – DC socket, 4-pin Dupont connector, USB 3.0 A socket
    • USB 3.0 Type-A socket with threaded housing for panel mounting
    • UART connection for stable 3.3 V TTL signal processing

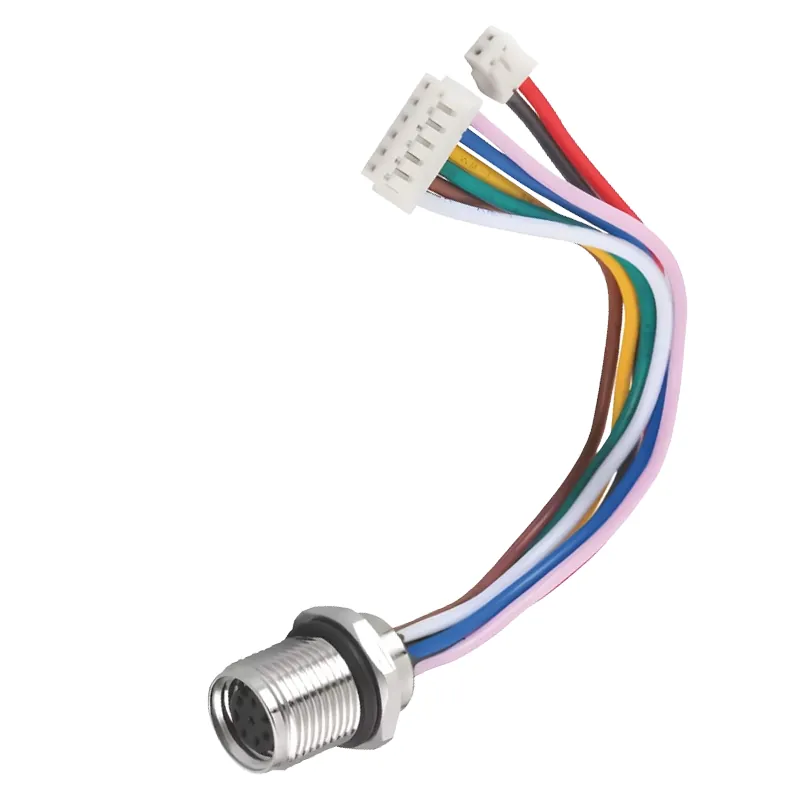

  • M8 panel-mount socket with colour-coded single cores to two JST connector housings

    Wire-to-board

    M8 panel-mount socket for enclosure mounting to two pin header connectors

    An 8-pin M8 panel-mount socket distributes signal and power to a 6-pin and a 2-pin JST housing.

    • M8 8-pin circular connector – 1× 6-pin JST housing and 1× 2-pin JST housing
    • Intelligent separation of signal and power
    • Flexible and space-saving single-core routing
    • Dust and water protection with front mounting

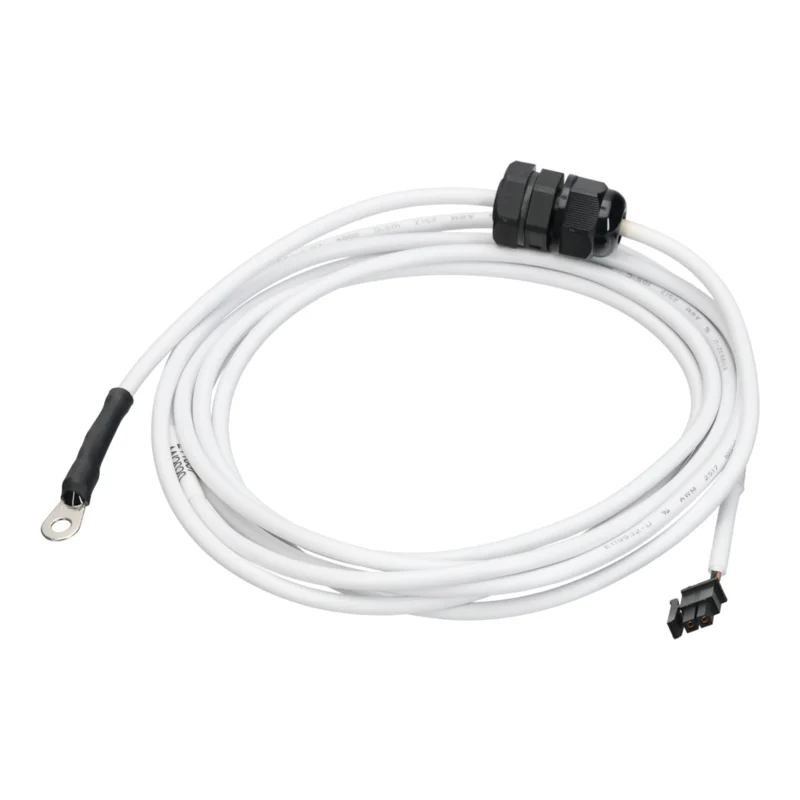

  • White cable with ring terminal, PG cable gland and Molex Micro-Fit connector

    Wire-to-board

    Ring terminal to Molex Micro-Fit with PG cable gland

    System cable from a ring terminal to a 2-pin Molex Micro-Fit housing, with a PG cable gland for the enclosure feed-through.

    • Ring terminal (eyelet) – Molex Micro-Fit 3.0 2-pin receptacle housing
    • Protection against mismating (polarisation)
    • Pre-assembled system cable
    • Industrial-grade certification (AWM 2517)
    • Dust- and watertight enclosure feed-through

Standard products with this interface are available in our online shop. To the online shop ↗

Used in these industries

Other interfaces

Can’t find your cable?

The examples show only a selection. Send us a drawing, sample or requirement – we will check how your connection can be realised through our production network.
